Color Video Door Phone (Discontinued)
Model Number: DP-222Q

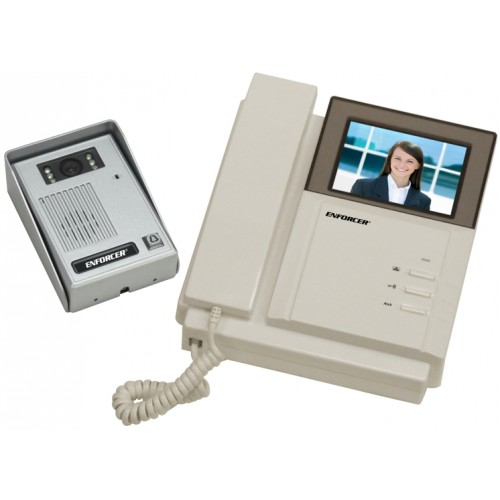

The ENFORCER Color Video Door Phone displays an image of the visitor in real time on the phone's monitor, while a built-in microphone and speaker on the camera unit let users communicate with visitors. Authorized visitors can be granted entry with the push of a single button from inside the protected premises.
Part List:
1. Camera x1
2. Camera bracket x1
3. Screws x8
4. Screw anchors x8
5. Camera screw x1
6. Allen wrench x1
7. Primary monitor x1
8. Monitor bracket x1
9. AC Power adapter x1
10. Wire connections (2-wire) x2
The ENFORCER Color Video Door Phone displays an image of the visitor in real time on the phone's monitor, while a built-in microphone and speaker on the camera unit let users communicate with visitors. Authorized visitors can be granted entry with the push of a single button from inside the protected premises.
- For home or business use
- Simple 2-wire connection
- Camera has 6 LEDs for nighttime operation
- Remotely and securely talk to visitors
- Unlock doors, gates, etc. from the monitor (requires additional hardware such as a door strike or an
electromagnetic lock) - High-quality TFT-LCD monitor
- Easily connect a secondary monitor
(sold separately) - Built-in microphone
- Adjustable contrast, brightness, and
ringer volume - Includes power supply, cable, and
mounting accessories
Part List:
1. Camera x1
2. Camera bracket x1
3. Screws x8
4. Screw anchors x8
5. Camera screw x1
6. Allen wrench x1
7. Primary monitor x1
8. Monitor bracket x1
9. AC Power adapter x1
10. Wire connections (2-wire) x2
Type | Color Camera |
Chip | CCD |
Resolution | 420 TV lines |
Lens | 3.6mm |
Relay Output | 1A@12VDC max. dry contact |
Dimensions | 5-1/4" x 3-9/16" x 1-3/8" (130 x 90 x 33 mm) |
Weight | 11-oz (312g.) |
Display | TFT-LCD |
Operating Voltage | 17VDC |
Current Draw | 440mA max. |
Dimensions | 7-5/8" x 8-1/2" x 1-13/16" (194 x 216 x 46 mm) |
Weight | 1-lb 7-oz (652g) |
