Color Hands-Free Video Door Phone (Discontinued)
Model Number: DP-234Q
Discontinued Product: Replaced by DP-264-1C7Q

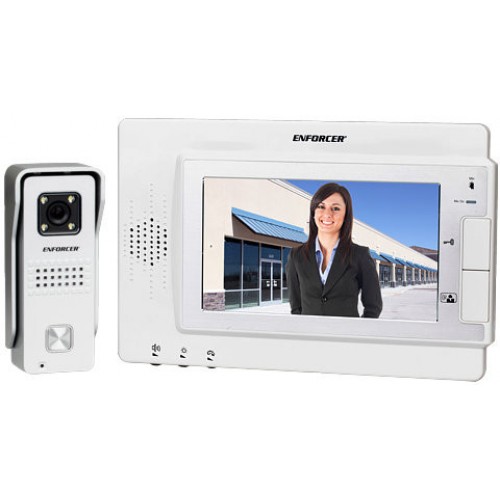

The ENFORCER Hands-Free Video Door Phone displays a color image of the visitor in real time on the phone's monitor, while a built-in microphone and speaker on the camera unit let users remotely and securely communicate with visitors and unlock doors and gates from the monitor. Authorized visitors can be granted entry with the push of a single button from inside the protected premises.
Discontinued Product: Replaced by DP-264-1C7Q
The ENFORCER Hands-Free Video Door Phone displays a color image of the visitor in real time on the phone's monitor, while a built-in microphone and speaker on the camera unit let users remotely and securely communicate with visitors and unlock doors and gates from the monitor. Authorized visitors can be granted entry with the push of a single button from inside the protected premises.
- For home or business use
- Simple 2-wire connection
- Built-in microphone and speaker for hands-free two-way communication. Remotely and securely talk to visitors
- Unlock doors, gates, etc. from the monitor with a single button press (requires additional hardware such as a door strike or an
electromagnetic lock) - Adjustable color tone, brightness, and contrast
- Adjustable speaker and ringer volume
- Camera has four LEDs for nighttime operation
- 1/3" Sony Super HAD II CCD
- 700 TV Line resolution
- Large 63/4" screen
- High-quality TFT-LCD monitor
- Easily connect an optional secondary monitor
(Model# DP-234-MQ – sold separately) - Includes power supply and
mounting accessories
Camera | x1 |
Camera bracket | x1 |
Screws | x8 |
Screw anchors | x8 |
Hands-free monitor | x1 |
Monitor bracket | x1 |
AC Power adapter | x1 |
Wire connections (2-wire) | x1 |
Type | Color Camera |
CCD | 1/3" Sony Super HAD II |
DSP | Enhanced Effio-E |
Resolution | 700 TV lines |
Lens | 4.5mm |
Relock Delay | 3 Seconds |
Relay Output | 1A@12VDC max. dry contact |
Current Draw | 180mA |
Dimensions | 2-3/16" x 5-5/16" x 1-9/16" (55 x 135 x 39 mm) with sunshield |
Weight | 11-oz (312g) |
Display | TFT |
Operating Voltage | 17VDC |
Current Draw | Active: 225mA max, Standby: 40mA |
Dimensions | 9-5/8" x 6-5/16" x 11/16" (245 x 160 x 18 mm) |
Weight | 17-oz (482g) |
