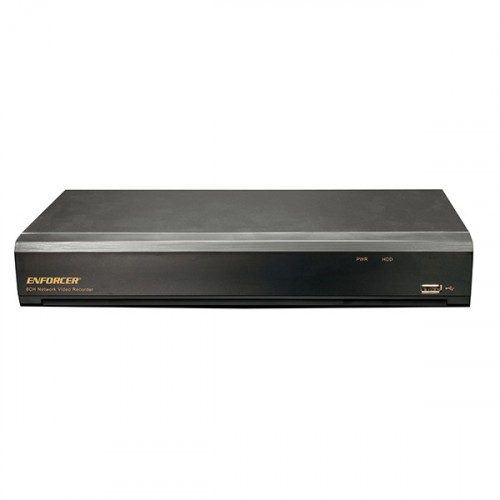

4K Network Video Recorder

Model Number: DRN-108Q
The ENFORCER Network Video Recorder offers 4K and H.265 High Efficiency Video Coding, reducing bandwidth and storage requirements without giving up video quality. These NVRs are perfect for a wide range of applications due to their cost-effectiveness and simple-to-install design.

NVR Features

  • Compatible with 8MP (4K) IP Cameras
  • Wizard assistance for easy first time set up
  • Plug-and-Play
  • Built-in PoE Ports (IEEE 802.3af/at)
  • VGA and HDMI outputs with up to 4K resolution
  • Includes 2TB HDD
  • Other HDD sizes available by special order, including 1/2/4/6/8/10 TB
  • ONVIF Profile S
  • Tri-stream encoding
  • Live view recording and playback up to 4K@30FPS
  • Easy app setup with QR code
  • P2P for simple remote connections using PC or mobile device
  • 9 AI functions including human and vehicle detection
  • Facial recognition with EV-N2806-2W4WQ 8MP Turret Camera

AI Functions

  • Face Detection
  • Human & Vehicle Detection
  • Perimeter Intrusion Detection
  • Line Crossing Detection
  • Stationary Object Detection
  • Cross Counting
  • Heat Map
  • Crowd Density Detection
  • Queue Length Detection
Resolution 8MP (4K), 5MP, 2MP (1080p), 1.3MP (960p), 1.0MP (720p)
Incoming Bandwidth 76Mbps
Outgoing Bandwidth 32Mbps
Video - HDMI Output 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080, 2560x1440, 3840x2160 (4K)
Video - VGA Output 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080
Framerate 4K: Up to 30FPS 4MP: Up to 60FPS 2MP: Up to 120FPS
Compression H.265+/H.265/H.264+/H.264
Video- AI Support
Playback function Fast forward / backward (2x,4x, 8x, 16x) , Slow forward (1/2x, 1/4x, 1/8x, 1/16x)
Local UI5.0
Web IE10/11 Safari V12.1 above Firefox V.52 above Google Chrome V.57 above Edge V.79 above
AI - HDMI Output 1 Output
AI - VGA Output 1 Output
PoE Input 8xRJ45
USB USB2.0 x 1 front & 1 rear
Alarm I/O None
Included HDD 2TB SATA
Internal storage capacity 1 SATA HDD, up to 10TB
Power supply [email protected]
Power Consumption 6W
Dimensions 11 13/16"x8 15/16"x2 1/16" (300x227x53 mm)
Operating Temperature 32°~104°F (0°~40°C)
Humidity Less than 90%RH
