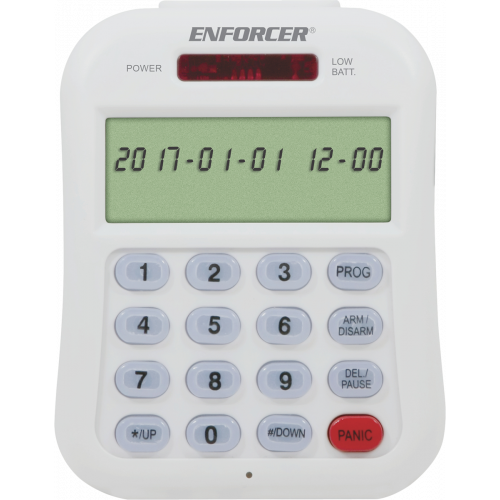

Auto Dialer for Security Systems (Discontinued)
Model Number: E-921APQ
Discontinued Product: Replaced by E-922CPQ
When triggered by an alarm system, the ENFORCER Auto Dialer can call up to 5 numbers and deliver a beep alert repeatedly for one minute. The receiver can then listen in to the room occupants or can disarm the system. The dialer includes a home mode (acting like a door chime when the owner is present) and a panic button. The 105dB built-in siren alarm can be programmed on or off.
NOTE: Designed to work with single-line analog phone lines
Discontinued Product: Replaced by E-922CPQ
When triggered by an alarm system, the ENFORCER Auto Dialer can call up to 5 numbers and deliver a beep alert repeatedly for one minute. The receiver can then listen in to the room occupants or can disarm the system. The dialer includes a home mode (acting like a door chime when the owner is present) and a panic button. The 105dB built-in siren alarm can be programmed on or off.

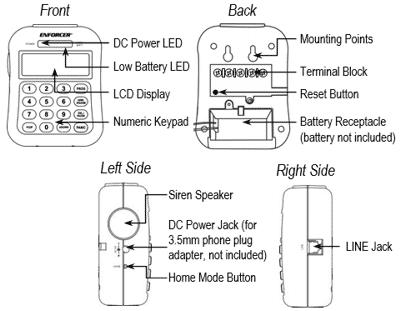

- 16-Digit large display with date/time and function icons
- 2 (N.C.) Triggers for multiple zone security
- Remote monitoring – user can call in to listen in to room sounds and arm/disarm dialer
- Remotely listen in to room sounds or disarm during call back
- Programmable PIN number and entry delay timing
- 5 Programmable emergency telephone numbers (up to 32 digits each)
- Programmable auto-dialing cycle repeat times
- Home mode function (acts as a door chime when user is at home)
- Panic button
- Built-in flash memory to protect against system data loss in case of power failure
- Touch-tone dialing
- Phone jack
- Low-battery indicator for backup battery (battery not included)
- DC Power input jack (3.5mm phone jack, not included)
- 9V Battery backup (battery not included)
- Wall-mountable
- Built-in 105dB alarm (with programmable alarm on/off)
- Built-in auxiliary output for external alarm or siren
NOTE: Designed to work with single-line analog phone lines
Operating Voltage | 9~12VDC |
Current Draw Max. (at 12VDC) - Standby | 5mA |
Current Draw Max. (at 12VDC) - Dialing | 10mA |
Current Draw Max. (at 12VDC) - Alarm On | 180mA |
Current Draw Max. (at 12VDC) - Total | 310mA |
Programmable Emergency Phone Numbers | 5 |
Maximum Digits per Telephone Number | 32 |
Backup Battery Type/Life (Not Included) | 9VDC / ~20hr |
Alarm Sound Level at 12" (30cm) | ≥105dB |
Trigger Inputs | 2 x N.C. Trigger |
Trigger Input Timer | ≥500ms |
Auxiliary Output Current (Max.) | 125mA |
Operating Temperature | 32º~+104º F (0º~40º C) |
Storage Temperature | -4º~140º F (-20º~+60º C) |
Weight | 6.2-oz (175g) |
Dimensions | 3-3/8" x 4-5/16" x 1-7/8" (86 x 110 x 47 mm) |
