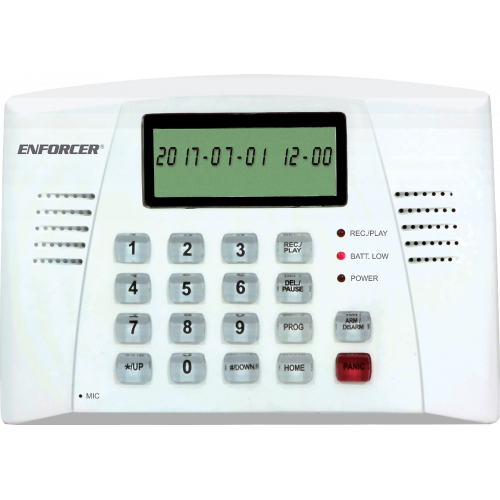

Automatic Voice Dialer for Security Systems (Discontinued)
Model Number: E-921CPQ
Discontinued Product: Closest Replacement E-921APQ
When triggered by an alarm system, the ENFORCER Voice Dialer can call up to 5 numbers and deliver a user-recorded 20-second voice message, playing repeatedly for one minute. The receiver can then listen in or broadcast a message to the room occupants or can disarm the system. The dialer includes a home mode (acting like a door chime when the owner is present) and a panic button. The 105dB built-in siren alarm can be programmed on or off.
NOTE: Designed to work with single-line analog phone lines
Discontinued Product: Closest Replacement E-921APQ
When triggered by an alarm system, the ENFORCER Voice Dialer can call up to 5 numbers and deliver a user-recorded 20-second voice message, playing repeatedly for one minute. The receiver can then listen in or broadcast a message to the room occupants or can disarm the system. The dialer includes a home mode (acting like a door chime when the owner is present) and a panic button. The 105dB built-in siren alarm can be programmed on or off.
- Trigger-activated alarm and dialer with user-programmable 20-second alarm message.
- 16-Digit large display with date/time and function icons
- 3 Triggers (1 N.C., 2 NO/NC) for multiple zone security
- Call in at any time to listen in to room, broadcast to room, arm, and disarm dialer
- Listen in, broadcast messages to room, and/or disarm during dialer call out
- Programmable PIN number and entry delay timing
- 5 Programmable emergency telephone numbers (up to 32 digits each)
- Home mode function (acts as a door chime when user is home)
- Panic button
- Back-lit keypad
- Built-in flash memory to protect against system data loss in case of power failure
- 9V battery backup (battery not included)
- Low-battery indicator for back up battery
- DC power input jack (power adapter not included)
- Wall mountable
- Built-in 105dB alarm (with programmable alarm on/off)
- Built-in auxiliary output for external alarm or siren
- Built-in line seizure
NOTE: Designed to work with single-line analog phone lines
Operating Voltage | 9~12VDC |
Current Draw Max. (at 12VDC) - Standby | 5mA |
Current Draw Max. (at 12VDC) - Dialing | 20mA |
Current Draw Max. (at 12VDC) - Alarm On | 150mA |
Current Draw max. (at 12VDC) - Relay On | 50mA |
Current Draw Max. (at 12VDC) - Speaker On | 250mA |
Current Draw Max. (at 12VDC) - Total | 480mA |
Emergency Voice Message Length (User Recorded) | Up to 20s |
Programmable Emergency Phone Numbers | 5 |
Maximum Digits per Telephone Number | 32 |
Backup Battery Type/Life (Not Included) | 9VDC / ~20hr |
Alarm Sound Level at 12" (30cm) | ≥105dB |
Trigger Inputs - Triggers 1 and 2 | 2 NO/NC Inputs |
Trigger Inputs - Trigger 3 | N.C. Trigger |
Trigger Input Timer | ≥500ms |
Auxiliary Output Current (Max.) | 125mA |
Operating Temperature | 32º~+104º F (0º~40º C) |
Storage Temperature | -4º~140º F (-20º~+60º C) |
Weight | 11.15-oz (316g) |
Dimensions | 6-11/16" x 4-11/16" x 1-1/2" (170 x 119 x 38 mm) |
