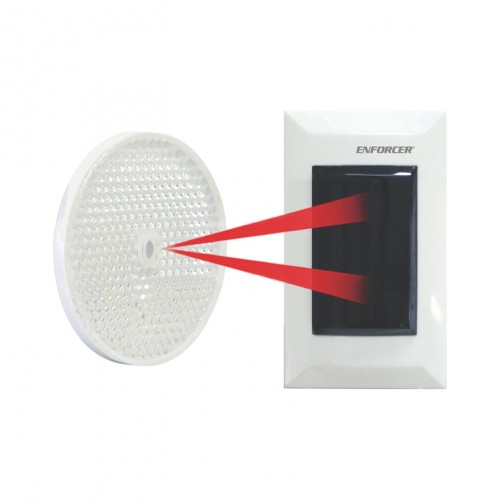

Photoelectric Retro-Reflective Beam Sensors, 16ft. (Discontinued)
Model Number: E-932-S16RRQ
- Fits single-gang box
- Adjustable alignment angle from ±15 degrees horizontally/vertically
- Response Time: 10msec.
- Alarm Output: Contact
1Amp@120 VAC/DC - Voltage – 12~18 VDC
- Current: 50mA Max.
- 43/4"x23/4"x11/2"
(120x70x38 mm)
Typical Applications
- Sensor for entrances, hallways, office rooms, retail shops or homes
- Attractive flush-mount design fits unobtrusively into the decor of most offices, retail shops or homes

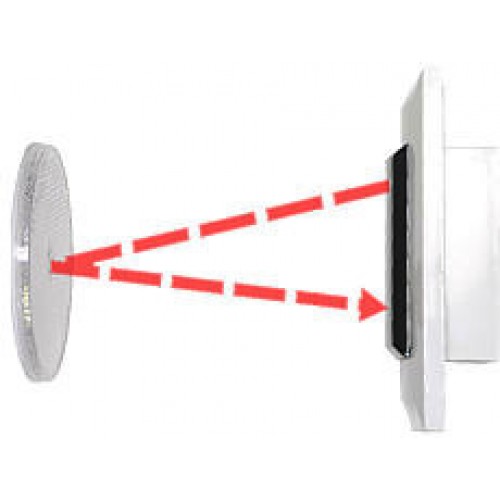

| Type | Reflective beam |
| Current Draw | 50mA max. |
| Sensing Range | 16ft (5m) |
| Operating Voltage | 12~18VDC |
| Reaction time | 10ms |
| Light Source | IR LED |
| LEDs - Red | (ON): Power |
| LEDs - Yellow | (OFF): Aligned, (ON): Out of alignment |
| Output | (NC/NO/COM) |
| Switching Capacity | 1A@120V (AC/DC) |
| Operating Temperature | 14º~122º F (-10º~50º C) |
| Alignment Angle | Vert. ±15º, Horiz. ±15º |
