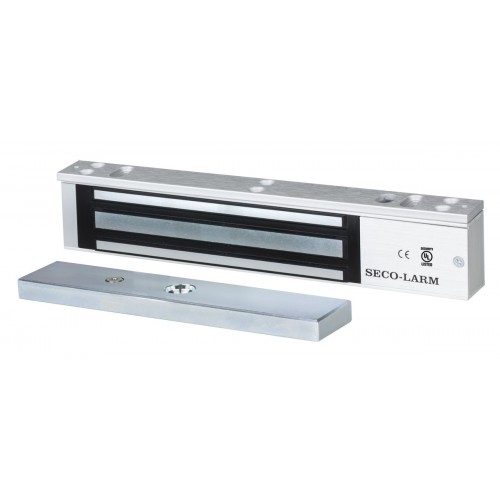

Single Door Maglock – 600-lb Holding Force, UL
Model Number: E-941SA-600
*Contact SECO-LARM for details. Applies in U.S.A. & Canada only.
- UL 10C, USA and Canada, UL 294 (Access Control System Units) , UL 1034 (Burglary-Resistant Electric Lock Mechanism), and UL 864 (Fire Alarm Systems) USA
- Anodized aluminum housing (US 28)
- 12/24VDC selectable
- MOV surge protection.
- Adjustable mounting bracket.
- Complete mounting hardware for typical installations.
- "L" bracket and "Z" brackets available for easy mounting.
- Detachable faceplate
- Lifetime Limited Warranty*
*Contact SECO-LARM for details. Applies in U.S.A. & Canada only.
| Holding Force | 600-lb (272kg) |
| Operating Voltage | 12 or 24 VDC±10% |
| Current Draw | 500mA@12VDC, 250mA@24VDC |
| Operating Temperature | 14º ~ 131º F (-10º ~ 55º C) |
| Electromagnet Dimensions | 9-7/8"x1"x1-5/8" (250x25x42 mm) |
| Armature Dimensions | 7-1/4"x1/2"x1-1/2" (185x12x38 mm) |
| Case Shipping Weight | 47-lb (22kg) |
| Weight | 4-lb 6-oz (2kg) |
| Case Quantity | 10 pcs |
