Passive CCTV Balun, Standard (Discontinued)

Model Number: EB-P101-01Q

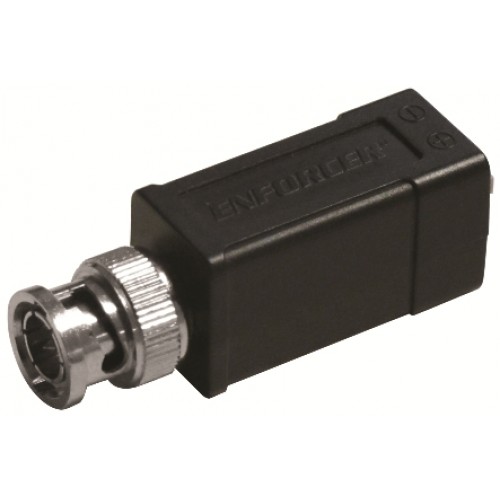

The new EB-P101-01Q is a Passive Video Balun. A Passive Video Balun allows a CCTV camera's video signal to be transmitted over low-cost CAT5 unshielded twisted pair (UTP) cable instead of costly coax cable. Suitable for full-motion color and monochrome cameras, they provide a quick, low-cost way to connect CCTV cameras to a monitor, multiplexer, or video recorder at up to 980ft away.

Transmits up to 1,300ft (400m) color video or up to 1,950ft (600m) B/W video
High immunity from interference
Passive operation - No external power required
Screwless terminals for quick installation
6" BNC Pigtail for flexible installation
Uses low-cost Cat5e/6 cable instead of costly coaxial cable
Small size allows mounting of multiple baluns behind a DVR

Specifications

Max. Range	B/W- 1,950' (600m), Color- 1,300' (400m)
Maximum input	1.0Vp-p
Insertion loss	<2dB per pair from DC~6MHz
Return loss	>15dB from DC~6MHz
Common Mode Rejection	>40 dB, 15KHz~6MHz
Power	No power required
Wire Type	UTP (Unshielded Twisted Pair) 16~24 AWG
Wire Category	Cat2~Cat6
Impedance	Coax, Male BNC- 75Ω @ 1MHz, Terminal- 100Ω @ 1MHz
Attenuation	DC~6MHz, 6.6 dB max
Frequency response	DC~6MHz
UTP Connection	Silver plated
Video Format	NTSC, PAL, SECAM
DC Loop resistance	52Ω/1000' (52Ω/305m)
Differential Capacitance	19pF/ft max. (62pF/m max.)
Operating Humidity	0~95% (Non-condensing)
Operating Temperature	32º~131º F (0º~55º C)
Storage Temperature	-4º~158º F (-20º~70º C)
Case	ABS plastic
Weight	1.4-oz(40g)

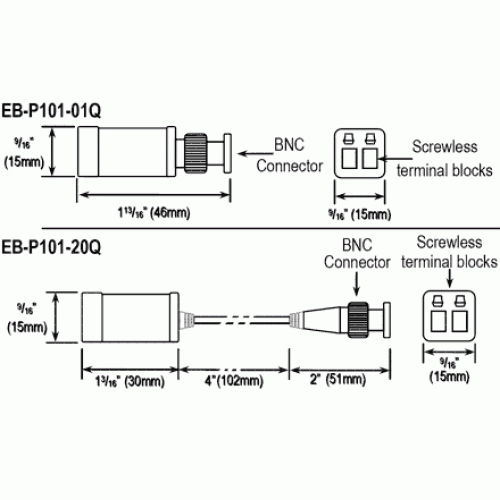

Dimensions	1-13/16" x 9/16" x 9/16" (46 x 15 x 15 mm)
