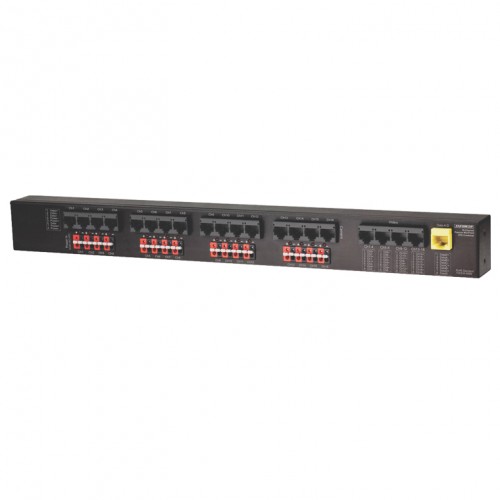

16 Channel Video/Power/Data Passive Midpoint Combiner
Model Number: EB-P316-60MQ
- Video, power, and data over a single category cable - CAT5e~6
- Compatible with all traditional and HD analog formats, including HD-AHD, HD-CVI, and HD-TVI
- Used in mid-span applications
- Supports up to 16 cameras
- Power LED indicator for each channel
- Can transfer HD analog video up to 1,476ft (450m)*
- Use any external low-voltage power supply
- Rack-mountable using included brackets
*720p HD-CVI video; other formats will have different maximum ranges
| Type | Passive Midpoint |
| Channels | 16 |
| Video Range - CVBS | 984’ (300m) |
| Video Range - HD-AHD | 720p: 1050’ (320m); 1080p: 722’ (220m) |
| Video Range - HD-CVI | 720p: 1476’ (450m); 1080p: 820’ (250m) |
| Video Range - HD-TVI | 720p/1080p: 820’ (250m) |
| Video Format | NTSC, PAL, SECAM |
| Maximum Input | 1.0Vp-p |
| Frequency Response | DC to 60MHz |
| CMMR | 60dB, 20kHz~60MHz |
| Wire Category | CAT5e~CAT6 |
| BNC Connection | Nickel-plated |
| Impedance - Coax | 75Ω@1MHz |
| Impedance - RJ45 | 100Ω@1MHz |
| Max. Amperage | 1A@12VDC/24VAC |
| Data Range | 2,400’ (800m) |
| DC Loop Resistance | 29Ω/1,000’ (9.5Ω/100m) |
| Differential Capacitance | 19pF/ft max (62pf/m max) |
| Output Voltage | N/A |
| Fuse | 1.5A max/CH |
| Input Power | N/A |
| Input Power Fuse | N/A |
| Operating Temperature | -14~140°F (-10~60°C) |
| Operating Humidity | 0~95%, non-condensing |
| Material | Steel |
| Weight | 1.93-lbs (876g) |
| Dimensions | 16-15/16” x 1-3/4” x 15/16” (430mm x 44mm x 33mm) |
