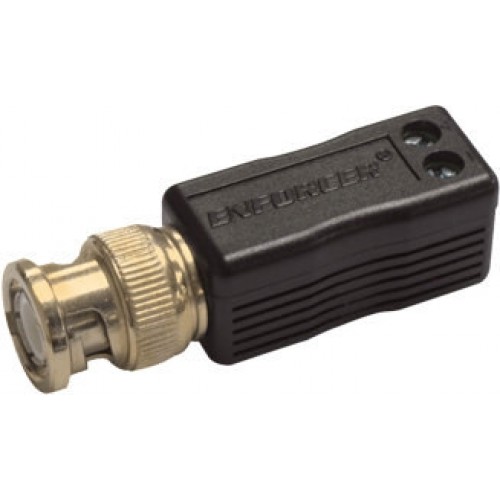

Passive Video Balun with Surge Protection, UL (Discontinued)

Model Number: EB-P501-01SQ

The fast, easy, and low-cost way to connect a CCTV camera to a monitor, multiplexer, or video recorder. Video baluns allow the video signal of a single CCTV camera to be transmitted long distances over low-cost Cat5e/6 unshielded twisted pair (UTP) cable. They are great for both full-motion color and full-motion monochrome cameras, and increase the flexibility of where such cameras can be mounted. These CCTV baluns also work over existing UTP cabling, making them perfect for use in nearly any building or across an entire campus.

Built-in surge protection
Gold-plated BNC for greater reliability and longer life
Transmits up to 1,300ft (400m) color video, 1,950ft (600m) B&W video
Passive operation - No external power required
Uses low-cost Cat5e/6 cable instead of costly coaxial cable
Terminal blocks - No crimping required
High immunity from interference
Small size (1¹⁵/₁₆"x⁹/₁₆"x⁹/₁₆") allows for mounting multiple units behind a DVR
Lifetime warranty

Specifications

Max. Range	B/W- 1,950' (600m), Color- 1,300' (400m)
Maximum input	1.0Vp-p
Insertion loss	<2dB per pair from DC~6MHz
Return loss	>18dB from DC~6MHz
Common Mode Rejection	60 dB, 15KHz~6MHz
Power	No power required
Wire Type	UTP (Unshielded Twisted Pair) 16~24 AWG
Wire Category	Category 2 or better
Impedance	Coax, Male BNC- 75Ω @ 1MHz, Terminal Block 100Ω @ 1MHz
Attenuation	DC~6MHz, 2.0 dB max
Frequency response	DC~6MHz
UTP Connection	Gold plated
Video Format	NTSC, PAL, SECAM
DC Loop resistance	52Ω/1000' (18Ω/100m)
Differential Capacitance	19pF/ft max. (62pF/m max.)
Operating Humidity	0~95% (non-condensing)
Operating Temperature	32º~131º F (0º~55º C)
Storage Temperature	-4º~185º F (-20º~85º C)
Case	ABS Plastic
Dimensions	1-15/16" x 9/16" x 9/16" (49.3 x 15 x 15 mm)
