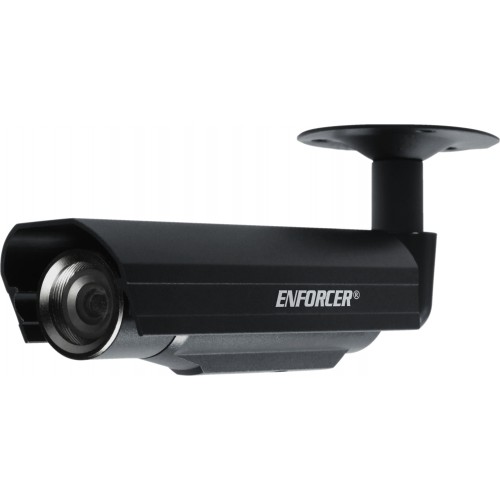

Mini CCTV Bullet Camera (Discontinued)
Model Number: EV-1125-N3BQ
- 1/3" Sony Super HAD II CCD
- 480 TV lines
- 3.6mm Lens (92° viewing angle)
- Weatherproof IP66
- 12VDC Operation
- Low current draw: 150mA
- Low-profile design
| Type | Mini Bullet Camera |
| Chip | 1/3" Sony Super HAD II Color CCD |
| Horiz. Resolution | 480 TV Lines |
| Pickup Elements | 768x494 |
| Minimum Illumination | .1 Lux F1.4 |
| H. Sync Frequency | 15.734 KHz |
| V. Sync. Frequency | 59.94Hz |
| Video Output | 1.0Vp-p, 75Ω |
| Lens | 3.6mm |
| S/N Ratio | >48dB |
| Operating Voltage | 12VDC |
| Current Draw | 150mA |
| Gain Control | Auto |
| Operating Temperature | 14º~+122º F (-10º~+50º C) |
| Dimensions | (3-15/16"x1-9/16" x1-9/16") (100x40x40 mm) [without Sunshield or base] |
| Weight | 7.05-oz (200g) [Gross] |
