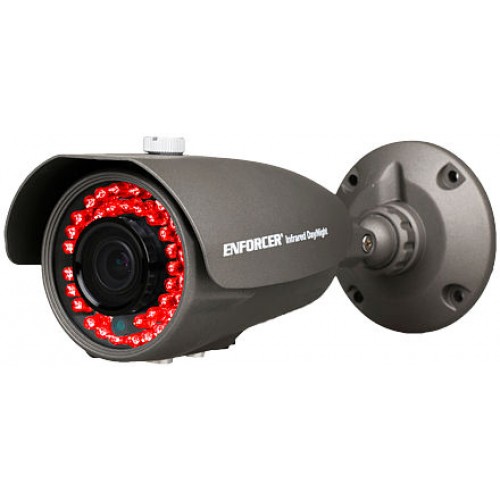

42-IR LED ZETA Series Bullet Camera (Discontinued)
Model Number: EV-1816-NKGQ
2.8~12mm, 700 TV Lines, OSD, 960H High Resolution
2.8~12mm, 700 TV Lines, OSD, 960H High Resolution
- 1/3" Sony
Super HAD II CCD - Up to 105ft (32m) range
- Weatherproof for
outdoor use (IP66) - Optimized with 42 IR LEDs to produce clear images
at night - Cables concealed in bracket to
prevent tampering - 12VDC operation
- Can be mounted to a standard lamp holder cover plate
(not included) - 3-Year warranty
- OSD (On-Screen Display) for programming special features
such as:
- White balance
- Privacy masking
- Highlight compensation
- Motion detection
- OSD settings programmable through in-line joystick or optional Zeta series OSD controller
(EV-18C)
| Type | IR LED Bullet Camera |
| Chip | 1/3" Sony Super HAD II CCD |
| Horiz. Resolution | 700 TV lines |
| Pickup Elements | 976(H)x492(V) |
| On Screen Display (OSD) | Yes |
| 960H | Yes |
| Minimum Illumination - IR On | 0.1 Lux |
| Minimum Illumination- LEDs off | 0 Lux |
| Sync | Internal |
| Video Output | 1.0Vp-p composite output, 75Ω |
| Lens | 2.8~12mm |
| No. of IR LEDs | 42 |
| LED Range | Up to 105ft (32m) |
| S/N Ratio | >45dB |
| Shutter Control | Auto Electric Shutter (AES) |
| Operating Voltage | 12VDC |
| Current Draw | LEDs OFF- 95mA, LEDs ON- 350mA |
| Gamma Correction | 0.45 |
| Gain Control | Auto |
| IP Rating | IP66 |
| Operating Temperature | 14º~122º F (-10º~+50º C) |
| Dimensions | 7-7/8"x3-1/2"x3-1/8" (200x90x80 mm) |
| Weight | 1-lb 2-oz (510g) |
