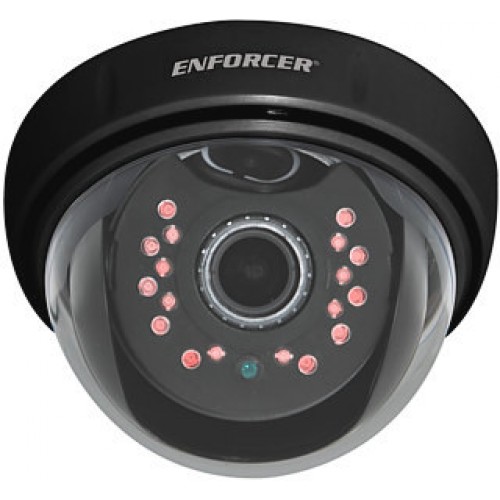

Indoor Dome Camera with IR LEDs & 3-Axis Gimbal (Discontinued)
Model Number: EV-2221-NKBQ
- 1/3" Sony Super HAD II CCD
- 3-Axis gimbal for wall or
ceiling mounting - 12VDC Operation
- CDS sensor for LED control
- 18 IR LEDs: Up to 50ft (15m) range
- Removable bracket for easy installation
- Concealed wiring for added security
- Tamper-resistant design
- Easy access to Zoom/Focus controls
(varifocal models) - Day/Night operation
| Type | Indoor IR Dome Cameras |
| Chip | 1/3" Sony Super HAD II CCD |
| Horiz. Resolution | 420TVL |
| Pickup Elements | 510x492 |
| Minimum Illumination | 0-lux (LEDs on) |
| Sync | Internal |
| Video Output | 1.0Vp-p composite output, 75Ω |
| Lens | 2.8~11mm, DC auto-iris |
| No. of IR LEDs | 18 |
| LED Range | 65ft (20m) |
| S/N Ratio | >48dB |
| Shutter Control | Auto Electronic Shutter (AES) |
| Operating Voltage | 12VDC±10% |
| Current Draw | LEDs off: 200mA, LEDs on: 400mA |
| Gamma Correction | 0.45 |
| Gain Control | Auto |
| White Balance | Automatic |
| Operating Temperature | -4º~122º F (-20º~+50º C) |

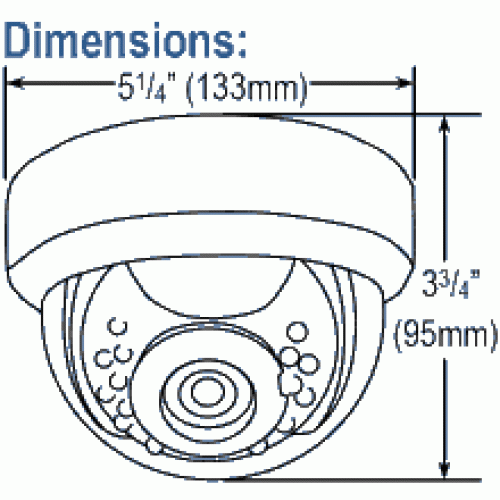

| Dimensions | 5-1/4"x3-3/4" (133x95mm) |
| Weight | 10-oz (283g) |
