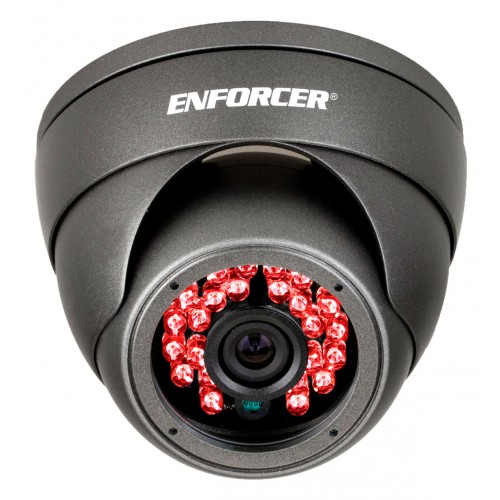

3.6mm Fixed Lens Vandal Rollerball Camera (Discontinued)
Model Number: EV-2706-N3GQ
- Sony 1/3" Super HAD II CCD
- 700 TV Lines
- 960H High resolution
- 3.6mm lens
- 24 IR LEDs, 50ft IR range
- 360º Triple-Axis Rotation
- Heavy-duty vandal-resistant design
- Day/Night operation. 0 Lux LEDs on, 0.06 Lux LEDs off
- Cables concealed in bracket to
prevent tampering - Rugged, weatherproof (IP65) construction
- Split-glass design to eliminate
IR reflection - Mounting brackets available in white and gray
NOTE: The EV-2706-N3GQ has been upgraded to / replaced by the EV-Y2201-A2GQ
| Type | IR Day/Night Color Ball-Mount Vandal Dome Hi-Res Camera |
| Chip | Color: 1/3" Sony Super HAD II CCD |
| Horiz. Resolution | 700 TV lines |
| Pickup Elements | 976x494 (NTSC), 976x582 (PAL) |
| 960H | Yes (In order to take advantage of 960H resolution, the camera must be used with a 960H DVR) |
| Minimum Illumination - IR On | 0.0 Lux |
| Minimum Illumination- LEDs off | 0.06 Lux |
| Scanning System | 2:1 Interlace |
| Sync | Internal |
| Video Output | 1.0Vp-p composite output, 75Ω |
| Lens | 3.6mm |
| No. of IR LEDs | 24 (850nm) |
| LED Range | Up to 50ft (15m) |
| S/N Ratio | Over 48dB |
| DSS (Digital Slow Shutter) | N/A |
| Operating Voltage | 12VDC |
| Current Draw | LEDs off- 95mA, LEDs on- 270mA |
| IP Rating | IP65 |
| Operating Temperature | -4º~122º F (-20º~+50º C) |
| Dimensions | 3-11/16"(D) x 3-5/32"(H), (94x80 mm) |
| Cable Length | 38" (98cm) |
| Weight | 14-oz (400g) |
