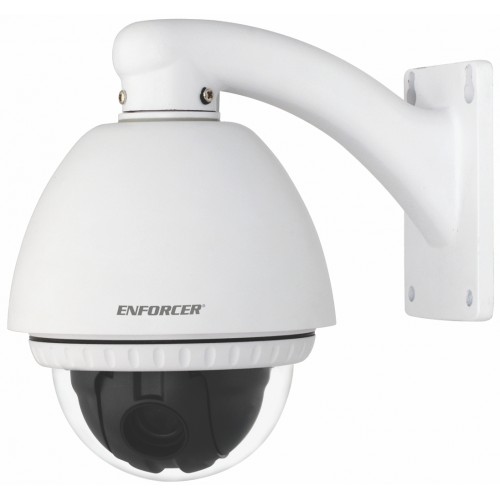

Mini PTZ Camera (Discontinued)
Model Number: EV-7105-NPEQ
- 10x Optical zoom and 10x digital zoom.
- Up to 100x zoom.
- Endless 360°/sec pan/tilt motion.
- 24VAC Operation.
- True Day/Night with ICR.
- Outdoor or indoor use.
- Built-in heater and fan.
- Maximum of 127 preset target views, each with its own characteristics such as white balance and auto exposure.
- Up to 95° tilt, up to 180° with auto-flip.
- Compatible with ENFORCER DR-1 Series DVRs.
| Housing Color | White |
| Type | Mini PTZ Camera |
| Video Output Format | NTSC or PAL |
| CCD | 1/4” Interline Transfer |
| Pickup Elements | 768x494 pixels |
| TV Lines | Color: 520 TV Lines / B/W: 570 TV Lines |
| On Screen Display (OSD) | Menu / PTZ information, etc. |
| Minimum Illumination | Color: 0.7 Lux / B/W: 0.02 Lux |
| Lens | F1.8, f=3.8~38mm |
| IR Cut Filter | ICR – removable IR cut filter |
| S/N Ratio | 50dB (AGC OFF) |
| Zoom | x10 Optical / x10 Digital |
| Operating Voltage | 24VAC |
| Current Draw | 20W (with heater and fan ON) |
| Gain Control | automatic gain control Normal / High / Off |
| Privacy | 4 Zones |
| Protocols | Pelco-D, Pelco-P selectable |
| Operating Temperature | -4~122° F (-20~50° C) |
| Dimensions | 4-13/16” x7”x4-13/16” (122x180x122 mm) |
| Weight | 2-lb 10-oz (1.2kg) |
