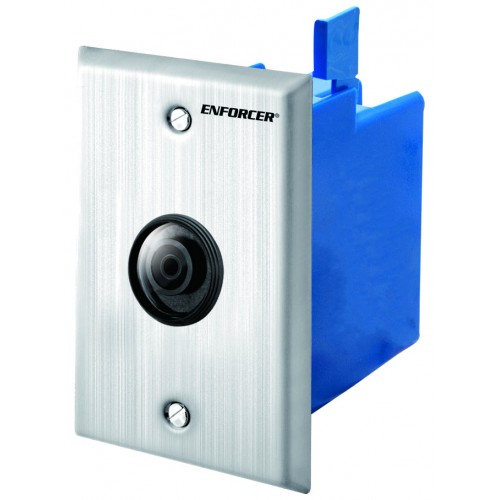

IP Wall-Plate Camera

EV-N5206-3S4Q
Model Number: EV-N5205-3S4Q
  • 1/2.8" 2MP Sony STARVIS™ CMOS
  • H.265, H.264/MJPEG, Tri-stream IP Camera
  • Max. 30FPS/Full HD 2MP (1920x1080)
  • IP65 Weatherproof*
  • Remote access via web browser
  • Network Bandwidth Control
  • Event Alarm, E-mail, FTP Function
  • ONVIF Profile S
  • Vandal-resistant metal front panel
  • 3DNR & D-WDR
  • 12VDC, PoE (IEEE 802.3af)
​*Use silicone sealant for weatherproof installation
Type Wall-plate Camera
Image sensor 1/2.8" 2MP Sony STARVIS™ CMOS
Resolution 2MP, (1920x1080)
Viewing Angle 120°
3D-NR Yes
2D-NR Yes
DWDR Yes
Megapixels 2MP
Minimum Illumination 0.01 Lux
Video Encoding H.265, H.264, MJPEG
Lens 2.5mm
F Stop 2.0
S/N Ratio 50dB
Operating Voltage 12VDC, PoE (IEEE 802.3af)
Current Draw 140mA max.
Gamma Correction 0.45
Gain Control Auto
White Balance Auto
IP Rating IP65 Weatherproof
Operating Temperature 32°~122° F (0°~50° C)
Dimensions 2-3/4"x4-1/2"x3-1/16" (70x114x78 mm)
Weight 3.8-oz (110g)

The screen in blank

  • Check that the camera is powered up
  • Check that the power supply's polarity is correct
  • Check that the monitor is powered up
  • Check that the video cable connecting the camera to the monitor is connected properly
  • Verify video format

The screen image is dim

  • Clean the lens using a soft, clean cloth
  • Change the position of the camera
  • Verify video format

The screen has poor contrast

  • Adjust the monitor's contrast knob
  • Change the position of the camera
  • Verify video format

The screen image flickers

  • Change the position of the camera
  • Verify video format

The camera case is hot

  • Check that the correct power supply is in use
