AC/DC CCTV Camera Power Supply - 8 outputs, 3 Amps@12VDC and 3 Amps@24VAC (Discontinued)
Model Number: EVP-124M6P16Q
Discontinued Product

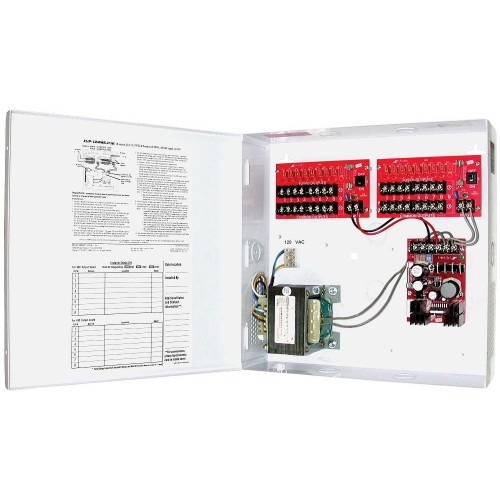

SECO-LARM's AC/DC CCTV power supply is the cost-effective way to power multiple cameras. The EVP-124M6-P16 power supply provides 8 adjustable 12.0~15.1 VDC outputs, plus another 8 outputs at 24VAC, all separately fused.
All outputs have individual Positive Temperature Coefficient (PTC) fusing and individual status LEDs, as well as surge protection and input fuses to provide the highest level of protection, packaged in a tough metal enclosure.
Discontinued Product
SECO-LARM's AC/DC CCTV power supply is the cost-effective way to power multiple cameras. The EVP-124M6-P16 power supply provides 8 adjustable 12.0~15.1 VDC outputs, plus another 8 outputs at 24VAC, all separately fused.
All outputs have individual Positive Temperature Coefficient (PTC) fusing and individual status LEDs, as well as surge protection and input fuses to provide the highest level of protection, packaged in a tough metal enclosure.
- Individually protected
PTC-type fused output - DC outputs are regulated
and filtered - Individual status LED indicator for
each output - Main power switches with
surge protection - Includes enclosure, 6-foot power cord, and UL
listed transformer - DC outputs are adjustable from
12.0~15.1 VDC - 12" x 12" x 3-1/2"
(308x311x91mm)
Input Voltage | 120 VAC, 60Hz |
Fuse type | PTC (Positive Temperature Coefficient) |
Output Voltage | AC Outputs- 24VAC, DC Outputs- 12.1~15.1 VDC, adjustable |
Number of Outputs | 8 DC, 8 AC |
Max. Current / Output | 1.1 Amp per Output |
Total Supply Current | 6 Amp total supply current |
Dimensions | 12" x 12" x 3-1/2" (308 x 311 x 91 mm) |
