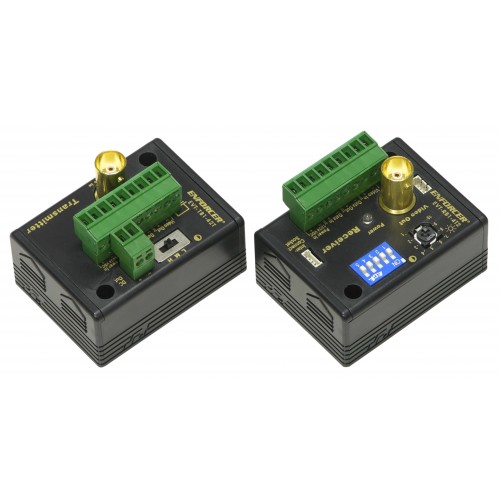

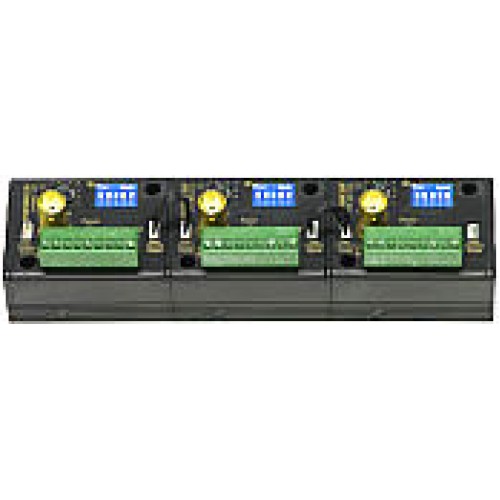

Active Video Balun with Data & Surge Protection & Interlocking Design - Set: (TX) + (RX) (Discontinued)
Model Number: EVT-AB1Q
Discontinued Product
The fast, easy, and low-cost way to connect a CCTV camera to a monitor, multiplexer, or video recorder. These amplified video baluns allow the video signal of a single CCTV camera to be transmitted long distances over low-cost Cat5e/6 unshielded twisted pair (UTP) cable. They are great for both full-motion color and full-motion monochrome cameras, and increase the flexibility of where such cameras can be mounted. These CCTV baluns also work over existing UTP cabling, making them perfect for use in nearly any building or across an entire campus.
Discontinued Product
The fast, easy, and low-cost way to connect a CCTV camera to a monitor, multiplexer, or video recorder. These amplified video baluns allow the video signal of a single CCTV camera to be transmitted long distances over low-cost Cat5e/6 unshielded twisted pair (UTP) cable. They are great for both full-motion color and full-motion monochrome cameras, and increase the flexibility of where such cameras can be mounted. These CCTV baluns also work over existing UTP cabling, making them perfect for use in nearly any building or across an entire campus.
- Transmits a monochrome video signal up to 1.5 miles (2.4km) or color up to
0.9 miles (1.5km) - 12VDC power - adapter included, or optional
24VAC transformer - Uses low-cost Cat5e/6 cable instead of costly
coaxial cables - Includes a BNC connector and terminal blocks - No need to waste time crimping
RJ-45 connectors - High immunity from interference - Built-in impedance coupled device and
noise filter - Easy installation
- Gold-plated BNC connector for added reliability and
longer life
Blue LED | Power on/off |
Max. Range | Color 5,000' (1,524m), B/W 8,000' (2,438m), Active Rx & passive balun- Up to 3,000' (914m) |
Maximum input | 1.0Vp-p, 75Ω, BNC connector |
Insertion loss | < 2dB per pair from DC~5Hz |
Return loss | > 15dB from DC~5MHz |
Common Mode Rejection | 60dB, 15KHz~5MHz |
Power | 12/24 VDC. 12VDC adapter included (can accept either regulated or unregulated) |
Wire Type | UTP (Unshielded Twisted Pair) 16~24 AWG |
Wire Category | Category 2 or better |
Impedance | (BNC): 75Ω@1MHz, Terminal Block: 100Ω@1MHz |
Attenuation | DC~5Hz, 1.5dB max |
Frequency response | DC~5MHz |
Surge Protection | Surge ratings IPP: 100 Amp at 10µsec. x 1000µsec. Max peak current: 250 Amp at 8µsec. x 20µsec., transient voltage surge suppressors |
UTP Connection | Terminal Blocks |
Video Format | RS170, NTSC, PAL, SECAM, CCIR |
Operating Humidity | 0~95% |
Operating Temperature | 7°~329° F (-14°~165° C) |
Case | Black ABS Plastic |
Weight | Tx: 3.4 oz. (95g), Rx: 3.0 oz. (84g) |
Adjustments | Tx - 3 positions, Rx - 5 dip switches (32 combinations) |
Current Draw | 40mA Tx, 60mA Rx @ 12VDC |
