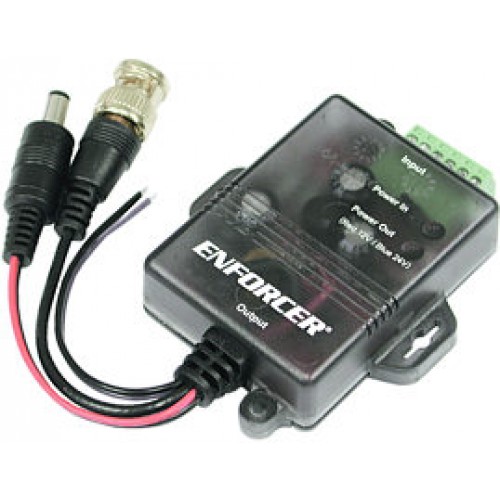

Passive Video, Power & Data Balun with Voltage Converter (Discontinued)
Model Number: EVT-PB1-L05Q
The EVT-PB1-L05Q video, power and data (VPD) balun with power converter provides an inexpensive, flexible solution for sending both data and power on CCTV signal lines.
The EVT-PB1-L05Q is a Passive Video Balun with a built-in voltage converter. Passive Video Baluns allow a CCTV camera's video signal to be transmitted over low-cost CAT5 unshielded twisted pair (UTP) cable instead of costly coax cable. Suitable for full-motion color and monochrome cameras, they provide a quick, low-cost way to connect CCTV cameras to a monitor, multiplexer, or video recorder at up to 2,000ft (610m) away.
The EVT-PB1-L05Q Video, Power and Data (VPD) Balun with Voltage Converter combines the flexibility of a VPD Balun with the ability to convert AC or DC voltage for use in low voltage DC applications. The VPD balun with voltage converter changes 12/24VAC/VDC input voltage to a regulated 5/12/24VDC adjustable output voltage. Converted DC power is regulated to provide stable power suitable for voltage sensitive cameras.
*Note: Shorter range may result when baluns are used with DVR.
The EVT-PB1-L05Q video, power and data (VPD) balun with power converter provides an inexpensive, flexible solution for sending both data and power on CCTV signal lines.
The EVT-PB1-L05Q is a Passive Video Balun with a built-in voltage converter. Passive Video Baluns allow a CCTV camera's video signal to be transmitted over low-cost CAT5 unshielded twisted pair (UTP) cable instead of costly coax cable. Suitable for full-motion color and monochrome cameras, they provide a quick, low-cost way to connect CCTV cameras to a monitor, multiplexer, or video recorder at up to 2,000ft (610m) away.
The EVT-PB1-L05Q Video, Power and Data (VPD) Balun with Voltage Converter combines the flexibility of a VPD Balun with the ability to convert AC or DC voltage for use in low voltage DC applications. The VPD balun with voltage converter changes 12/24VAC/VDC input voltage to a regulated 5/12/24VDC adjustable output voltage. Converted DC power is regulated to provide stable power suitable for voltage sensitive cameras.
- Video, power, and data (VPD)
over Cat5 - Selectable 5/12/24VDC output
via jumper - Transmits a monochrome video signal up to 2,000ft (610m) or color up to
1,300ft (400m) - Passive operation -- No external
power required - RoHS compliant
- Uses low-cost Cat5 cable instead of costly
coaxial cables - Gold-plated BNC connector for reliable longer life
- High immunity from interference - Built-in impedance-coupled device and noise filter. Helps to reduce RF interference, cross talk, picture tearing, and other picture
quality problems - Built-in multi-color LED indicates power is on and polarity
is correct - Small size, only
31/4" x 29/16" x 3/4" (81x65x20 mm), excluding6" (150mm) cable - Patent Pending
*Note: Shorter range may result when baluns are used with DVR.
Max. Range | 2,000’ (610m) B/W, 1,300’ Color (400m) |
Maximum input | 1.0 Vp-p |
Insertion loss | < 2dB per pair from DC ~ 5 Mhz |
Return loss | >-15dB from DC ~ 5 Mhz |
Common Mode Rejection | 60dB, 15KHz~5MHz |
Power | No power required for video |
Wire Type | UTP (unshielded twisted pair) |
Wire Category | 20 - 24 AWG @ screwless terminal blocks, CAT2 or better, CAT5 ideal, CAT6 improves range |
Connectors | In- Removable terminal block, Out- Pigtail BNC (Video), Pigtail DC plug (center pin positive, Power), Wire (Data) |
Impedance | Coax, male BNC: 75 Ω@ 1 MHz, Terminal block: 100 Ω @ 1 MHz |
Attenuation | DC ~ 5 Mhz, 1.5 dB max |
Frequency response | DC ~ 5 Mhz |
Video Format | RS170, NTSC, PAL, SECAM, CCIR |
Operating Humidity | 0 ~ 95% |
Operating Temperature | 14°~ 165°F (-10°~74°C) |
Case | ABS Plastic |
Dimensions | 3-1/4" x 2-9/16" x 3/4" (81 x 65 x 20 mm) |
