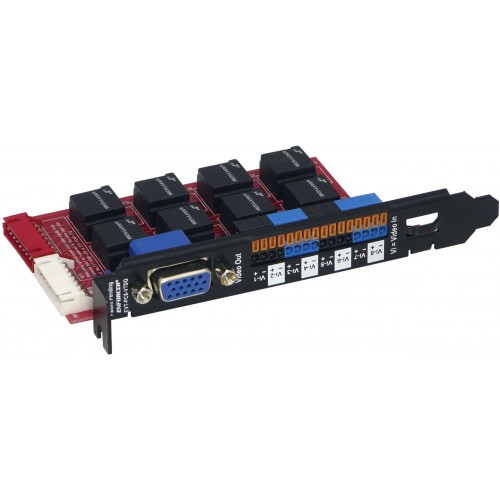

8-Port Video Balun Card, Range Up to 2,000ft (610m) (Discontinued)
Model Number: EVT-PC8-VTDQ
- Connects up to 8 CCTV cameras (per PCI card) to a central location using low-cost Cat5e/6
UTP cable - Simplifies and organizes
PC-based DVRs - Mounts in a standard computer
PCI slot - Works with full-motion CCTV cameras up to 2,000ft (610m) away via passive
video baluns - Works in conjunction with all
SECO-LARM passivevideo baluns. - Feeds the camera signals to nearly any standard video DVR via coax cables.
6" BNC patchcables included - Video card is passive operation - no
power required
Number of Channels | 8 |
Range | B/W: 2,000 ft. (610M), Color: 1,300 ft. (400M) |
Video Format | RS170, NTSC, PAL, SECAM, CCIR |
Maximum Input | 1.0Vp-p |
Frequency Response | DC ~ 5Mhz |
Insertion Loss | < 2dB per pair from DC ~ 5 Mhz |
Return Loss | >-15dB from DC ~ 5 Mhz |
Common/differential mode rejection | 60 dB, 15 KHz~5 MHz |
Wire Type | UTP ( 16 - 24 AWG) |
Wire Category | CAT2 or better, CAT5 ideal |
Video Input Connector | Screwless terminal block or 8-pin connector |
Video Output Connector | Female VGA connector |
Attenuation | DC ~ 5 Mhz, 1.5 dB max |
Impedance | Coax, Male BNC- 75Ω@1MHz, Terminal Block- 100Ω@1MHz |
Power | No power required |
Operating Temperature | 14~165ºF (-10~73ºC) |
Operating Humidity | 0 ~ 95% |
