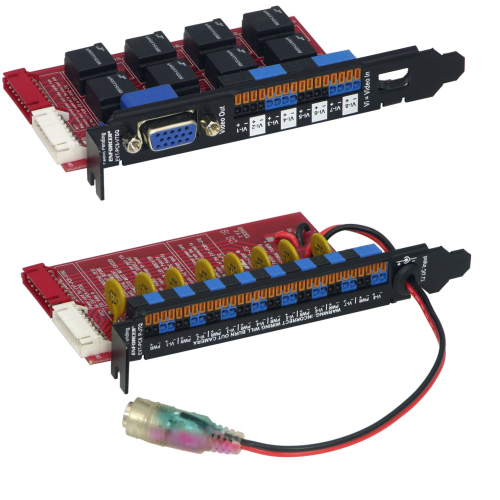

8-Port PCI Passive Video Balun Hub and Power Distribution Card (Discontinued)
Model Number: EVT-PC8KQ
- Connects up to 8 CCTV cameras (per PCI card) to a central location using low-cost Cat5e/6
UTP cable - Simplifies and organizes
PC-based DVRs - Mounts in a standard computer
PCI slot - Works with full-motion CCTV cameras up to 2,000ft (610m) away via passive
video baluns - Works in conjunction with all
SECO-LARM passivevideo baluns - Feeds the camera signals to nearly any standard video DVR via coax cables.
6" BNC patchcables included - Video card is passive operation - no
power required
Power Distributor Card
- Optional power distribution card for easy
power distribution - Includes a 12VDC 6 Amp
power adaptor - Tri-Color LED indicates polarity and
power present - Removable terminal blocks for
easy installation
| Number of Channels | 8 |
| Range | B/W- 2,000 ft (610M), Color- 1,300 ft (400M) |
| Video Format | RS170, NTSC, PAL, SECAM, CCIR |
| Maximum Input | 1.0Vp-p |
| Frequency Response | DC ~ 5 Mhz |
| Insertion Loss | < 2dB per pair from DC ~ 5 Mhz |
| Return Loss | >-15dB from DC ~ 5 Mhz |
| Common/differential mode rejection | 60 dB, 15 KHz~5 MHz |
| Wire Type | UTP ( 16 - 24 AWG) |
| Wire Category | CAT2 or better, CAT5 ideal |
| Video Input Connector | Screwless terminal block or 8-pin connector |
| Video Output Connector | Female VGA connector |
| Attenuation | DC ~ 5 Mhz, 1.5 dB max |
| Impedance | Coax, Male BNC- 75Ω @ 1MHz, Terminal Block- 100Ω@1MHz |
| Power | No power required |
| Operating Temperature | 14~165ºF (-10~14ºC) |
| Operating Humidity | 0 ~ 95% |
| Video Input | Screwless terminal block |
| Power Output | Screwless terminal block |
| Power Indicator | 3-color LED |
| Wire Type | UTP ( 16 - 24 AWG) |
| Wire Category | CAT2 or better, CAT5 ideal |
| Voltage Output | 12VDC |
| Current Draw | 6 Amp |
| Operating Humidity | 0 ~ 95% |
| Operating Temperature | 14~165ºF (-10~14ºC) |
