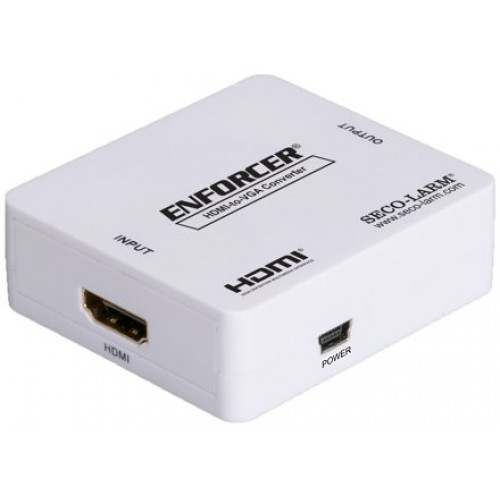

HDMI-to-VGA & Stereo Converter

Model Number: MVA-HV01Q

The MVA-HV01Q HDMI®-to-VGA Converter allows the user to view video in formats as large as 1920x1080 from HDMI® devices on VGA displays. The MVA-HV01Q also has a 3.5mm stereo output allowing the conversion of audio as well.

Converts HDMI® to VGA+Audio
Supports input resolutions up to 1920x1080
Supports up to 1920x1080 on VGA output
Stereo audio output
Plug and play operation

Specifications

Supported Resolutions	1152x864, 1280x800, 1360x768, 1440x1050, 1440x900, 1680x1050, 1600x1200, 1920x1080
Video Input Signal	0.5~1.0Vp-p
DDC Input Signal	5.0Vp-p
Vertical Frequency	50/60Hz
Video Amplifier Bandwidth	1.65Gpbs/165MHz
Power Supply	5VDC (USB)
Operating Temperature	32°~158° F (0°~70° C)
Operating Humidity	5%~95% RH (no condensation)
Dimensions	2-3/8” x 2-1/8” x 13/16” (60 x 54 x 20 mm)
Weight	1.5oz (43g)
