HDMI Extender over Single Coaxial Cable (Discontinued)
Model Number: MVE-AA11-01NQ

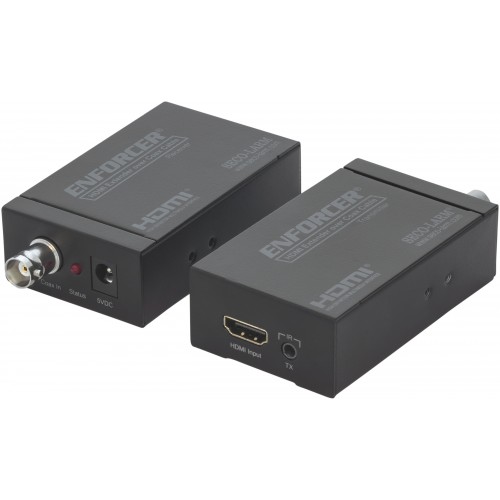

The ENFORCER HDMI® Extender over Single Coaxial Cable extends the range of traditional HDMI® cabling methods by using an active transmitter and receiver to send video and audio over a single Coaxial Cable with zero signal loss. HDMI® formats as large as 1080p can be transmitted up to 328' (100m) between the two units.
The ENFORCER HDMI® Extender over Single Coaxial Cable extends the range of traditional HDMI® cabling methods by using an active transmitter and receiver to send video and audio over a single Coaxial Cable with zero signal loss. HDMI® formats as large as 1080p can be transmitted up to 328' (100m) between the two units.
- Signal Strength - Active operation ensures that the signal strength will remain strong over the length of
the cable - Distance - The HDMI® Extender over Single Coaxial Cable is capable of providing a clear HDMI® signal up to
328ft (100m) - Formats Supported - The HDMI® Extender over Single Coaxial Cable supports both progressive and interlaced formats: 1080p/1080i/720p/576p/480p/480i
- Plug and Play - The HDMI® Extender over Single Coaxial Cable comes as a complete set consisting of a transmitter and receiver, power supplies, and IR dongles
- Zero Signal Loss - Integrated circuits in the transmitter and receiver clean, buffer, and amplify the HDMI® signal to prevent signal loss and ensure a clear signal regardless of the length of the cable
- IR Pass-through - Send IR signals from the source to the monitor for discrete operation of devices
Input Video Signal | 3.3V |
Input DDC Signal | 5Vp-p (TTL) |
Deep Color | 36bits (12bits/color) |
Video Format Supported | High-speed HDMI®, HDCP 1.1 |
Audio Formats Supported | LPCM, Dolby-AC3, DTS7.1, DSD |
Output Video | HDMI® |
Resolutions Supported | 1080p/1080i/720p/576i/480i |
Range | Up to 328' (100m) |
Video Amplifier Bandwidth | 1.65Gbps |
Coaxial Cable | RG6 |
Maximum Input Cable Length | 24AWG (15m), 26AWG (10m), 28AWG (5m) |
Maximum Output Cable Length | 24AWG (15m), 26AWG (10m), 28AWG (5m) |
Video Input Connector | HDMI® Type A 19-pin female |
Video Output Connector | HDMI® Type A 19-pin female |
Power Supply | 1A@5VDC (2 adapters) (2.1mm plug) |
ESD Protection (Human Body Model) | ±8kV (air-gap discharge), ±4kV (contact discharge) |
Operating Temperature | 32º~104º F (0º~40º C) |
Operating Humidity | 20~90% RH (no condensation) |
Dimensions | 3-3/16" x 1-15/16" x 1" (81 x 49 x 25 mm) |
Weight | 4.2-oz (120g) (each) HDMI® Accessories |
Maximum Single Link Range | 1080p |
