Enhanced HDMI® Extenders over Single CAT5e/6 UTP Cables, range up to 330ft (100m) (Discontinued)

Add to Compare

Model Number: MVE-AH1H1-02ZQ

•
•

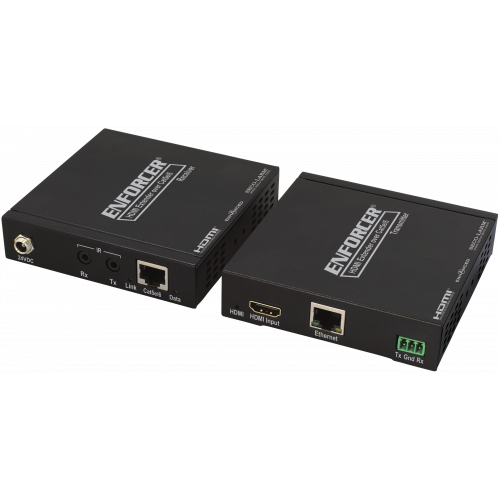

The ENFORCER Enhanced HDMI® Extender over Cat5e/6 extends the range of HDMI® signals to send video and audio up to 330ft (100m) over a single Cat5e/6 cable. The extender includes an IR transmitter and receiver, allowing the user to use a remote control at one end of an installation to control a device at the opposite end. A single power supply can power both devices from either end of the installation.

• Supports resolutions from 480i up to 4Kx2K/UHD
• Plug and play operation – comes as a complete set
• Bi-directional IR for remote control extension
• Includes one (1) 24VDC locking power supply – set can be powered at either end
• Signal Strength – Active operation ensures that the signal strength will remain strong over the length of the cable
• Distance – The Enhanced HDMI® Extender over Cat5e/6 can transmit a clear HDMI® signal up to 330ft (70m)
• Formats Supported – The Enhanced HDMI® Extender over Cat5e/6 supports both progressive and interlaced formats: 4K/1080p/1080i/720p/576p/576i/480p/480i
• Plug and Play – The Enhanced HDMI® Extender over Cat5e/6 comes as a complete set consisting of a transmitter, receiver, power supply, and IR adapters
• Zero Signal Loss – Integrated circuits in the transmitter and receiver clean, buffer, and amplify the HDMI® signal
• Bi-Directional IR – Send IR signals from the source to the monitor or from the monitor to the source for discrete operation of devices
• Connect Multiple Units – Repeat up to four sets to extend HDMI® range up to 918ft (280m)
