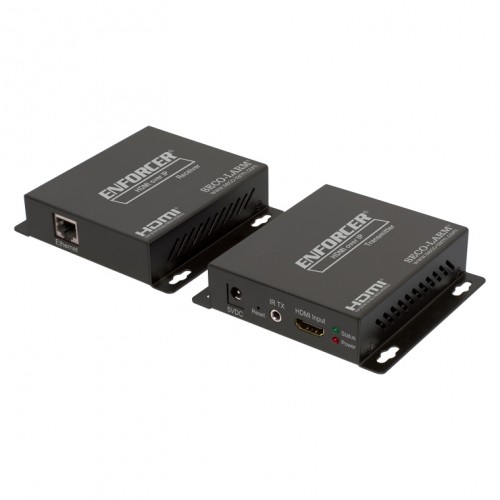

HDMI Extender over IP - Tx and Rx Kit (Discontinued)
Model Number: MVE-AHMPM-01NQ
Discontinued Product: Replaced by MVE-AHMPM-02NQ
The MVE-AHMPM-01NQ HDMI Extender over IP extends the range of HDMI® signals using an active transmitter and receiver to send video and audio over a single Cat5e/6 cable. The MVE-AHMPM-01NQ supports One-to-One, One-to-Many, and Many-to-Many installation via VLAN, as well as a cascading installation of multiple units for extended range.
Discontinued Product: Replaced by MVE-AHMPM-02NQ
The MVE-AHMPM-01NQ HDMI Extender over IP extends the range of HDMI® signals using an active transmitter and receiver to send video and audio over a single Cat5e/6 cable. The MVE-AHMPM-01NQ supports One-to-One, One-to-Many, and Many-to-Many installation via VLAN, as well as a cascading installation of multiple units for extended range.
- Extends HDMI® over one Cat5e/6 cable or IP network
- Supports One-to-One, One-to-Many, and Many-to-Many applications
- Supports cascaded installation
- IR Pass-through support (38kHz~56kHz)
- HDCP Compliant
- Transmitter (MVE-AHMPM-01NTQ) and receiver (MVE-AHMPM-01NRQ) also available separately
Deep Color | 24-bit |
Video Format Supported | DTV/HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p |
Resolutions Supported | 1080p |
Range | Cat6- 390ft (120m), Cat5e- 360ft (110m) |
IP Addressing | Static or dynamic |
Default IP Address (Static) | Transmitter- 192.168.168.55, Receiver- 192.168.168.56 |
Default MAC Address | Transmitter- 00:0b:78:00:60:01, Receiver- 00:0b:78:00:60:02 |
IR Frequency | 38kHz~56kHz |
Operating Voltage | 5VDC@1A |
Current Draw | 3W |
Operating Temperature | 23°~95° F (-5°~35° C) |
Dimensions | 4-1/16" x 3-11/16" x 1" (104 x 94 x 25 mm) |
Weight | 7.8-oz (221g) |
