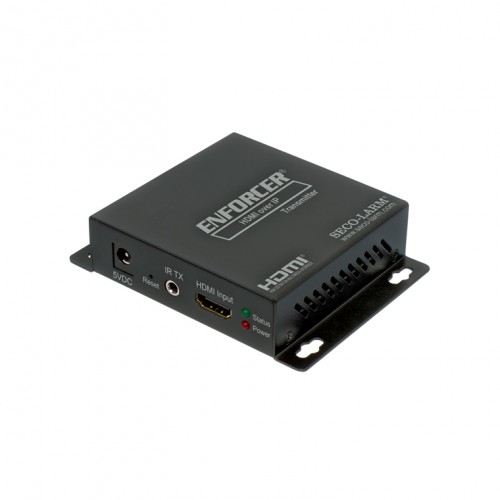

HDMI Extender over IP - Transmitter (Discontinued)
Model Number: MVE-AHMPM-01NTQ
The MVE-AHMPM-01NQ HDMI® Extender over IP extends HDMI® signals' range using an active transmitter & receiver to send video & audio over a single Cat5e/6 cable. Kit includes MVE-AHMPM-01NTQ transmitter & MVE-AHMPM-01NRQ receiver (also sold separately). The MVE-AHMPM-01NQ supports One-to-One, One-to-Many, and Many-to-Many installation via VLAN, as well as a cascading installation of multiple units for extended range.
The MVE-AHMPM-01NQ HDMI® Extender over IP extends HDMI® signals' range using an active transmitter & receiver to send video & audio over a single Cat5e/6 cable. Kit includes MVE-AHMPM-01NTQ transmitter & MVE-AHMPM-01NRQ receiver (also sold separately). The MVE-AHMPM-01NQ supports One-to-One, One-to-Many, and Many-to-Many installation via VLAN, as well as a cascading installation of multiple units for extended range.
- Extends HDMI® over one Cat5e/6 cable or IP network
- Supports One-to-One, One-to-Many, and Many-to-Many applications
- Supports cascaded installation
- IR Pass-through support (38kHz~56kHz)
- HDCP Compliant
- Transmitter (MVE-AHMPM-01NTQ) and receiver (MVE-AHMPM-01NRQ) also available separately
| Deep Color | 24-bit |
| Video Format Supported | DTV/HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p |
| Resolutions Supported | 1080p |
| Range | Cat6- 390ft (120m), Cat5e- 360ft (110m) |
| IP Addressing | Static or dynamic |
| Default IP Address (Static) | 192.168.168.55 |
| Default MAC Address | 00:0b:78:00:60:01 |
| IR Frequency | 38kHz~56kHz |
| Operating Voltage | 5VDC@1A |
| Current Draw | 3W |
| Operating Temperature | 23°~95° F (-5°~35° C) |
| Dimensions | 4-1/16" x 3-11/16" x 1" (104 x 94 x 25 mm) |
| Weight | 7.8-oz (221g) |
