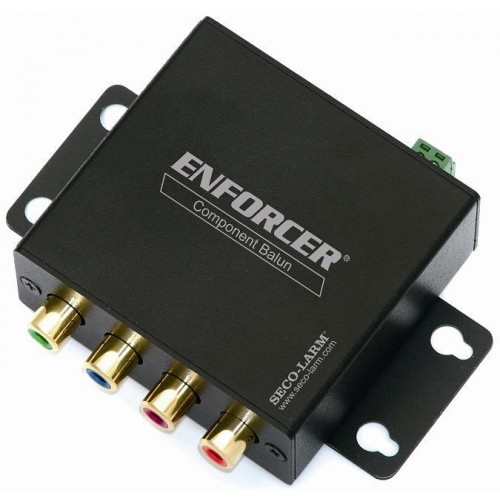

Standard Component Video Baluns (Discointinued)

Model Number: MVE-PC015Q

The ENFORCER MVE-PC Series of Component Video Baluns extends the range of traditional component video (YPb Pr or RGB) signals to distances often needed in CCTV applications. Used in pairs, the baluns use a single Cat5e/6 Cable to deliver HD resolutions up to 1080p and a single digital audio or IR signal distances of up to 160ft (50m), or up to 1000ft (300m) for 480i.

Send component video and digital audio signals over a single Cat5e/6 cable.
Wall or desktop versions available.
Passive operation: No power required.
Gold-plated RCA connectors.
Programmable digital audio or IR transmission.
Supports HDTV signals up to 1080p.
Single RJ-45 output connector.
Range: 1080p - 160ft (50m)
480i - 1,000ft (300m)
Both units can work together or with MVE-PY016Q.

Specifications

Max. Range	1080p- 160ft (50m), 480i- 1,000ft (300m)
Video Format	YPb Pr or RGB; (1080p/1080i/720p/720i/480p/480i)
Maximum Input	1.0Vp-p
Power	No power required
Wire Type	UTP (unshielded twisted pair)
Wire Category	20-24 AWG @ screwless terminal blocks / Cat5e/6 for improved range
Connectors	Input- RCA / Terminal Block, Output- RJ-45
Attenuation	DC ~5MHz, 1.5dB max.
Dimensions	3" x 2-5/8" x 1" (76 x 67 x 25 mm)
Weight	5.0-oz
Max. Humidity	95%
Operating Temperature	32°~131° F (0°~55° C)
Case	Aluminum
