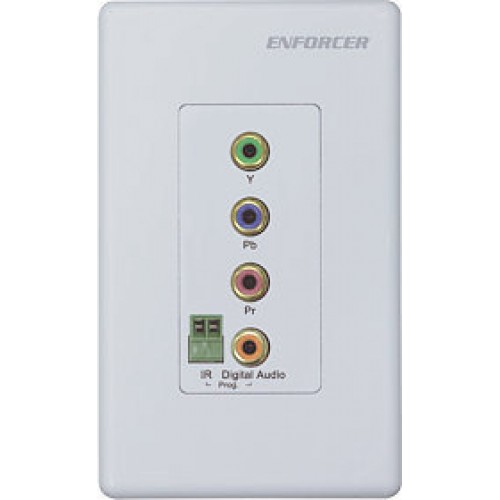

Wall-Plate Component Video Baluns (Discontinued)
Model Number: MVE-PCW15Q
The ENFORCER MVE-PC Series of Component Video Baluns extends the range of traditional component video (YPb Pr or RGB) signals to distances often needed in CCTV applications. Used in pairs, the baluns use a single Cat5e/6 Cable to deliver HD resolutions up to 1080p and a single digital audio or IR signal distances of up to 160ft (50m), or up to 1000ft (300m) for 480i.
The ENFORCER MVE-PC Series of Component Video Baluns extends the range of traditional component video (YPb Pr or RGB) signals to distances often needed in CCTV applications. Used in pairs, the baluns use a single Cat5e/6 Cable to deliver HD resolutions up to 1080p and a single digital audio or IR signal distances of up to 160ft (50m), or up to 1000ft (300m) for 480i.
- Send component video and digital audio signals over a single
Cat5e/6 cable - Wall or desktop versions available
- Passive operation:
No power required - Gold-plated RCA connectors
- Programmable digital audio or
IR transmission
- Supports HDTV signals up
to 1080p - Single RJ-45 output connector
- Range: 1080p -
160ft (50m)
480i -1,000ft (300m) - Both units can work together or with
MVE-PY016Q
Max. Range | 1080p- 160ft (50m), 480i- 1,000ft (300m) |
Video Format | YPb Pr or RGB; (1080p/1080i/720p/720i/480p/480i) |
Maximum Input | 1.0Vp-p |
Power | No power required |
Wire Type | UTP (unshielded twisted pair) |
Wire Category | 20-24 AWG @ screwless terminal blocks / Cat5e/6 for improved range |
Connectors | Input- RCA / Terminal Block, Output- RJ-45 |
Attenuation | DC ~5MHz, 1.5dB max. |
Dimensions | 3-1/4" x 2-9/16" x 3/4" (81 x 65 x 20 mm) w/o plate |
Weight | 3.4-oz |
Max. Humidity | 95% |
Operating Temperature | 32°~131° F (0°~55° C) |
Case | PC plastic |
