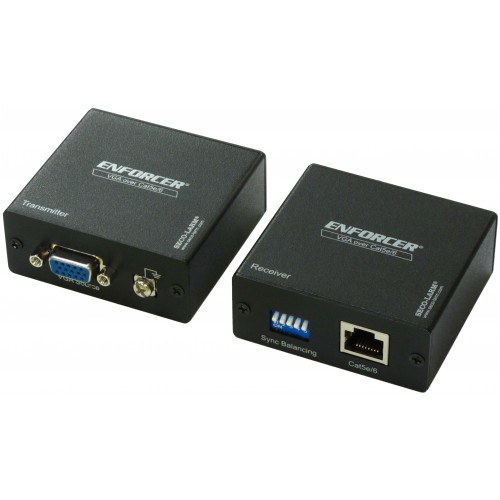

Passive VGA Balun over Cat5e/6 (Discontinued)
Model Number: MVE-SV010Q
- Transmits VGA signals from personal computers, digital video recorders, video splitters, or similar video sources with a VGA output to CRT or LCD monitors or
VGA projectors - Works with video signals of up to 1280x1024
pixel resolution - Uses Cat5e/6 cable* instead of heavier, more expensive
VGA cables - Sold in pairs: One for the video source, one for
the monitor - Small size, only 2-1/2"
x 2-5/8" x 1" (64 x 67 x 27mm) - Range: Up to 443ft (135m)
| VGA Connectors | Female, 15-pin |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Range - 640x480 pixels (15MHz) | 443ft (135m) |
| Range - 800x600 pixels (30MHz) | 344ft (105m) |
| Range - 1024x768 pixels (60MHz) | 246ft (75m) |
| Range - 1280x1024 pixels (100MHz) | 197ft (60m) |
| Size | 2-1/2" x 2-5/8" x 1" (64 x 67 x 27 mm) |
| Weight | 10-oz (284g) |
| Operating Temperature | 32º~131º F (0º~55º C) |
| Operating Humidity | Up to 95% |
| Storage Temperature | -4º~185º F (-20º~85º C) |
