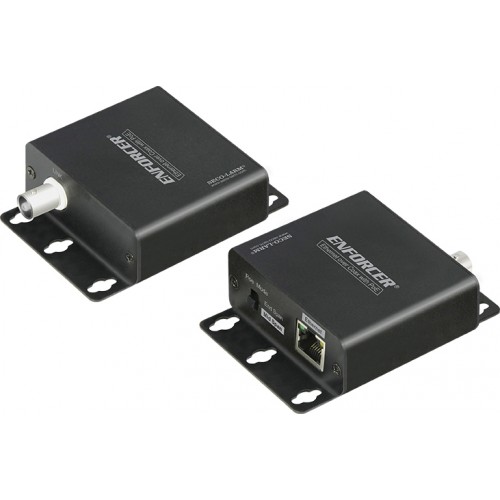

Ethernet over Coax with PoE (Discontinued)
Model Number: NE-AE01-030TQ
- Extends powered Ethernet devices, such as cameras with PoE, over existing coax cables
- Connects cameras with PoE to 10/100BaseT PoE Injector/Switches over single coax cable
- Supports PoE: IEEE802.3af/at
- Supports 10/100 Mbps transmission rate
- Can extend up to 984ft (300m)
- Sold as a set
| Link Connection | BNC |
| Ethernet Connection | RJ45 |
| Linking Cable | 75Ω coax cable |
| Ethernet Speed | 10/100 Mbps |
| Transmission Range | 984ft (300m) |
| PoE Standard | IEEE 802.3af/ IEEE 802.3at |
| PoE Mode Setting | Mid-span/End-span |
| LED Indicator | Power (green) |
| Current Draw | 1.25W |
| Operating Temperature | 32º~131º F (0º~55º C) |
| Dimensions | 2-5/8” x 3-7/16” x 1-1/16” (67 x 87 x 27 mm) |
| Weight | 5.3 oz. (150g) |
