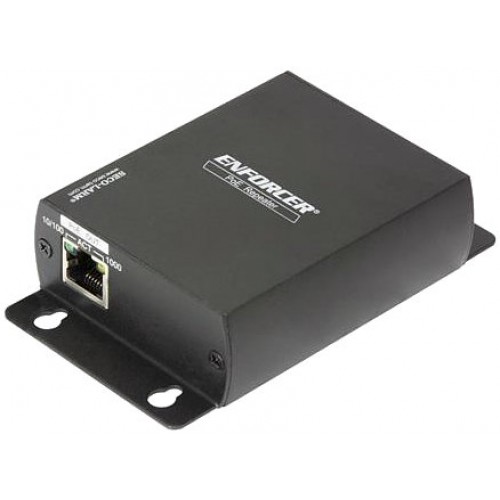

PoE Repeater (Discontinued)
Model Number: NR-P101FQ
Discontinued Product
Discontinued Product
- Extends power and data an additional 394ft (120m)
- Compliant with standard PoE IEEE 802.3af
- Installs on Cat5e/6 4-pair UTP cable with RJ45 jacks
- Supports 10/100/1000 BASE-T transmission rates
- Passive operation – no external power required
- Easy plug-and-play installation
- Auto-sensing for detecting PoE or non-PoE devices
- Built-in LED status indicators
- Sealed and fanless for increased reliability
- Compact, wall-mountable for convenience
Ethernet Connection | RJ45 |
Transmission Range - Single Repeater | Up to 787ft (240m) |
Transmission Range - Two Repeaters | Up to 1,181ft (360m) |
Max Device Power Range with PoE switch | 1st PoE Repeater- 8.58W at 787ft (240m), 2nd PoE Repeater- 4.21W at 1,181ft (360m) |
PoE Standard | IEEE 802.3af Standard, 48V, 12.95W |
Data Link | Pin 1/2,3/6,4/5,7/8 |
Power Link | Pin 1/2 (+),3/6 (-) End-Span |
Current Draw | 1.1W (23mA)@Standby, 1.44W (30mA)@10Mbps, 1.92W (40mA)@100/1000 Mbps |
Material | Aluminum |
Operating Temperature | 32°~131° F (0°~55° C) |
Dimensions | 2-5/8” x 4-5/16” x 1-1/16” (67 x 110 x 27 mm) |
Weight | 6.4 oz. (180g) |
