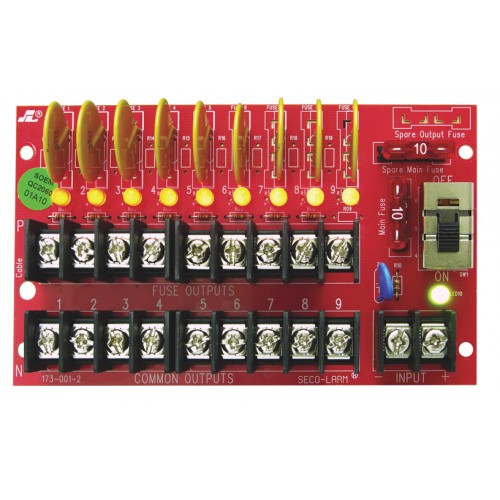

Power Distribution Board - 9 Outputs, 5A Total, 1.1A each, PTC Fuses (Discontinued)
Model Number: PD-9PSQ
SECO-LARM's PD-9PSQ makes it simple to supply multiple CCTV cameras or other security devices with separate auto-reset, PTC-fused* fused power. The PD-9PSQ power distribution board provides 9 fused outputs and individual status LEDs, as well as a main power switch with surge protection and a master input fuse to provide the highest level of protection.
SECO-LARM's PD-9PSQ makes it simple to supply multiple CCTV cameras or other security devices with separate auto-reset, PTC-fused* fused power. The PD-9PSQ power distribution board provides 9 fused outputs and individual status LEDs, as well as a main power switch with surge protection and a master input fuse to provide the highest level of protection.
- Individually protected PTC*-type
fused outputs - Individual status LED indicators
- Main power switch with
surge protection - Main input power fuse protects power source. Glass automotive style
fuse included
*Positive Temperature Coefficient - auto-reset current limiting
Input Voltage | 28VAC/DC |
Fuse type | PTC |
Number of Outputs | 9 |
Main fuse rating | 5A |
Output fuse rating | 1.1 A |
Dimensions | 5-3/16” x 3-1/8” x 1” (132 x 79 x 25.5 mm) |
