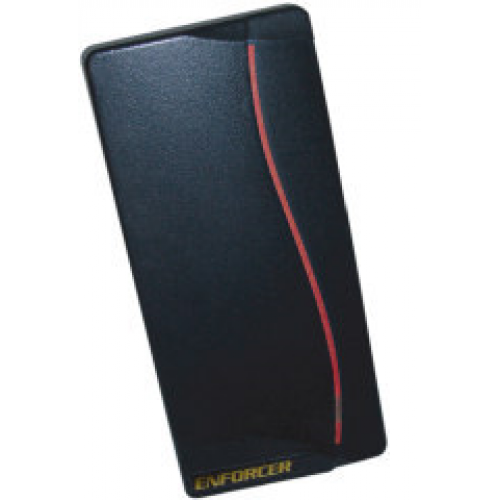

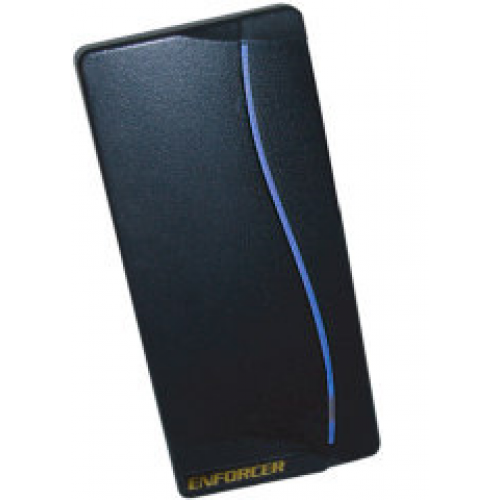

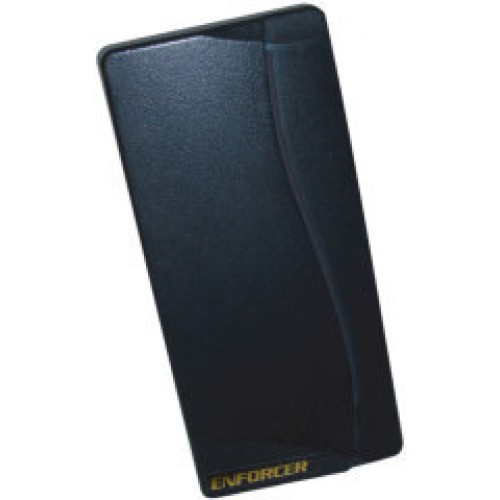

Stand-Alone Proximity Card Reader (Discontinued)

Model Number: PR-112S-A
Discontinued Product: Replaced by PR-3123-PQ or PR-3125-PQ
The new ENFORCER Proximity Reader provides an inexpensive, flexible solution for controlled access. The unit combines simple installation, quick programming, and high reliability.
  • Stand-alone Proximity Card Reader
  • Use in small businesses, homes, gates/parking structures, apartments and other locations
  • Sealed and waterproof (IP67). Mounts easily to interior and exterior wall
  • Attractive tri-color wave shaped LEDs status bar indicates proximity reader's mode and status
    • Blue - On/Valid Card Indicator
    • Green - Programming Mode
    • Red - Invalid Card
  • Output relay for either time (1 to 180 seconds) or"Toggle" mode
  • Egress input to exit the protected area without using the proximity reader
  • Buzzer is programmable for audible confirmation or silent mode
  • Up to 100 user cards can be programmed
  • User cards easily deleted. Delete a single card, or all cards
  • Up to 5 "Master" cards can be programmed
  • 10 Cards included
  • Optional accessories:
    PR-K1S1-A: Additional proximity cards, sold in packs
    of ten
    PR-K1K1-AQ: Proximity tags, sold in packs
    of ten
Operating Voltage 12VDC
Current Draw- Active 200mA @ 12VDC
Current Draw- Standby 80mA @ 12VDC
Transmit Frequency 125kHz
User Card Read Range 6" (15cm)
Master Card Limit 5 cards
User Card Limit 100 Cards
Output 1 Relay (NO/NC/COM)
Contact Rating 1A@30V
Relay Time Delay 1~180 s / Toggle Mode
Operating Temperature -4°~158° F (-20°~70° C)
IP Rating Waterproof IP67
Dimensions 3-11/16"x1-3/4"x5/8" (95x44x17 mm)
