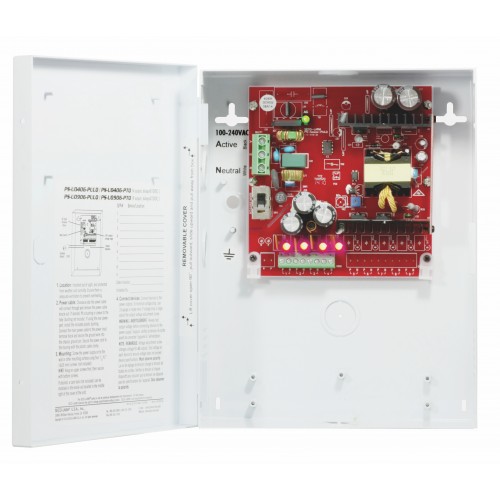

12VDC Distributed Switching CCTV Power Supply, Panel Box, 4 Outputs, 6A (discontinued)
Model Number: PS-U0406-PULQ
SECO-LARM's line of 12VDC switching CCTV power supplies is the cost-effective way to power multiple cameras and is perfect for many security system and access control applications including integration with alarms. These switching power supplies provide an adjustable 12.6~13.5 VDC output.
These models include individual Positive Temperature Coefficient (PTC) fused outputs and individual status LEDs, as well as surge protection and input fuse to provide a high level of protection, all packaged in a tough metal enclosure.
SECO-LARM's line of 12VDC switching CCTV power supplies is the cost-effective way to power multiple cameras and is perfect for many security system and access control applications including integration with alarms. These switching power supplies provide an adjustable 12.6~13.5 VDC output.
These models include individual Positive Temperature Coefficient (PTC) fused outputs and individual status LEDs, as well as surge protection and input fuse to provide a high level of protection, all packaged in a tough metal enclosure.
- Universal 100~240
VAC input - New lightweight, cost-effective design
- Each output individually fused
(PTC-type fuses) - Adjustable output to reduce voltage drop
(12.6~13.5 VDC) - PTC Fuses rated 2.5A@30VDC
- Individual output status
LED indicators - Heavy-duty steel case with
removable cover - Built-in short circuit and
overheat protection - 6-foot power cord included
| Input Voltage | 100~240VAC (47~63Hz) |
| Fuse type | PTC (Positive Temperature Coefficient) rated 2.5A@30VDC |
| Output Voltage | 12.6~13.5 VDC, adjustable |
| Number of Outputs | 4 |
| Max. Current / Output | 2.5 Amp |
| Total Supply Current | 6 Amp |
| Input fuse | Micro fuse 3.15A@250VAC |
| Dimensions | 10"x7-3/4"x3-5/8" (254x196x92 mm) |
| Weight | 4-lb 7-oz (2.01kg) |
