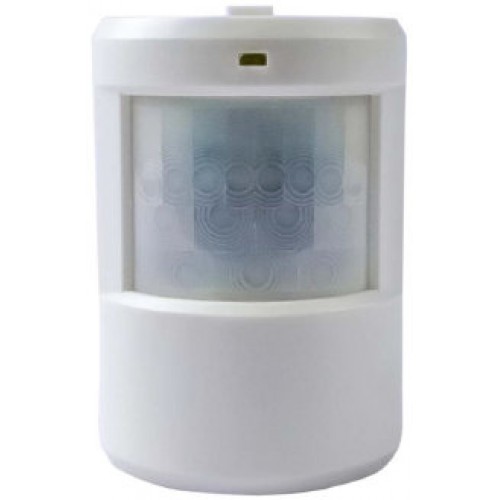

Wireless Indoor PIR Sensor
Model Number: RA-4961-PRQ
- For use with the RA-4961 series RF receivers
- Wirelessly monitor entryways, rooms, or other areas
- Up to 1,000ft (305m) transmission range*
- Sensing range up to 26ft (8m)
- Programmable activation time
- Runs on batteries for a convenient, wireless installation
- Adjustable mounting angle
*Line of sight. Transmission range will vary depending on installation and operating environment.
Frequency | 914.8MHz |
Channels | 1 |
Transmission Range | Up to 1,000ft (305m) |
Power Supply | 1x 9VDC Battery (Not Included) |
Current Draw | Standby- 7μA, Max- 18mA |
Estimated Battery Life | 300 days (@ 3 triggers/day) |
Low Battery Indicator | Zone LED on receiver blinks continuously |
PIR Sensor Detection Angle | 80° Horizontal |
PIR Sensor Range | 26’ (8m) |
Operating Temperature | -4°~140°F (-20°~60°C) |
Dimensions | 2-7/16” x 1-15/16” x 3-9/16” (62 x 49 x 90 mm) |
