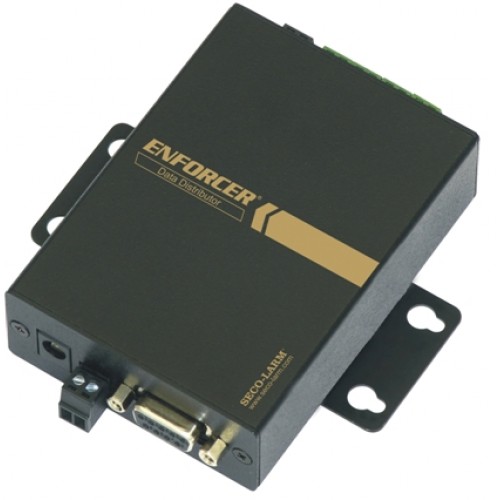

4-Port Data Distributor Transmits a Single RS-485 or RS-232 Input to 4 RS-485 Outputs
Model Number: RD-304-D1Q
The ENFORCER RD-304-D1Q RS-485 Data Distributor transmits a single RS-485 or RS-232 input to four (4) RS-485 outputs.
The ENFORCER RD-304-D1Q RS-485 Data Distributor transmits a single RS-485 or RS-232 input to four (4) RS-485 outputs.
- Range: Up to 4,000ft (1,200m)
- Connect up to 64 RS-485 cameras
or devices - Outputs: Four (4) RS-485
- 12VDC power adapter (included)
- Mounting bracket and rubber
feet included - Built-in surge protection and
signal isolation - Dual colored LED
Red - RS-485 activity,Blue - Power ON
Max. Number of Inputs | 2 |
Input Connectors | One (1) RS-232 / two (2) RS-485 |
Output | Four (4) RS-485 terminal blocks |
Operating Voltage | 12VDC@500mA adapter (included) |
Current Draw | 350mA |
LED Indicators- Blue | Power ON |
LED Indicators- Red | RS-485 activity |
Material | Metal |
Operating Temperature | 32°~113° F (-0°~45° C) |
Dimensions | 4-3/8" x 3-3/4" x 1-1/8" (111 x 95 x 29 mm) |
Weight | 15-oz (425g) |
