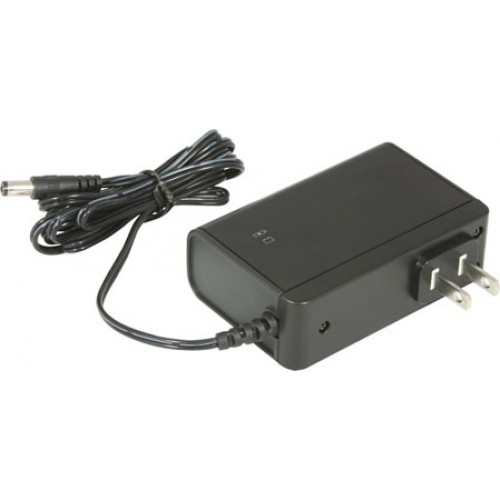

Plug-and-Play 12VDC Realtime Backup Power for CCTV (Discontinued)
Model Number: SB-P1012-26Q
Discontinued Product
ENFORCER Plug-and-Play Backup Power units provide backup power during temporary power outages, replaces the original 12VDC power adapter for a simplified installation.
Discontinued Product
ENFORCER Plug-and-Play Backup Power units provide backup power during temporary power outages, replaces the original 12VDC power adapter for a simplified installation.
- Real-time backup power with no break when input power is lost
- DC UPS Auto-start
- Batteries provided by GE™ (2600mAh user-replaceable Lithium Ion - SB-P1012-26Q /2000mAh lithium polymer - SB-L10V1-20Q)
- Over-discharge, overcharge, overload, short-circuit, and surge protection on input and output
- LED indicators for power and backup operation
Type | Plug-in UPS adapter |
Input | 85~265VAC@50/60Hz |
Input Protection | Overload and short-circuit fuse |
Output | 12VDC±5% |
Output Power Rating | 10W |
Output Protection | Over-discharge, overload, short-circuit protection |
Battery | Replaceable GE™ Li-Ion 18650 3.7VDC/2600mAh |
Battery Protection | Overcharge, over-discharge, overload, short-circuit, battery polarity |
Backup Time | Half Load - 70 min, Full Load- 30 min |
LED Indicators | Power, backup |
Output Cord | 5.5ft / 1.4m |
Output Plug | 5.5x2.1mm DC plug |
Operating Temperature | 32~104°F (0~40°C) |
Operating Humidity | 0~95% non-condensing |
Dimensions | 3-7/16" x 2-7/8 x "1-5/32" (87 x 59.8 x 29 mm) |
Weight | 4.3-oz (122g) |
