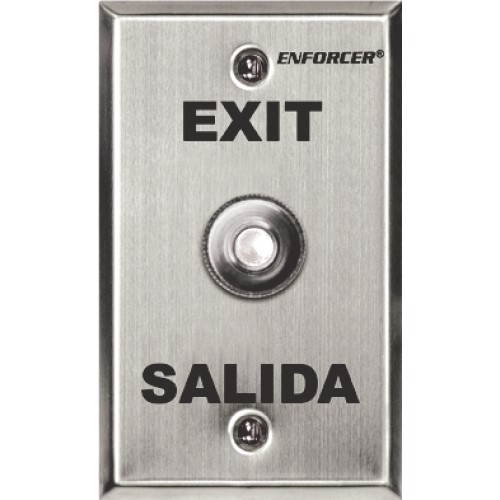

RTE Plate with Pneumatic Timer - Single-Gang, Stainless-Steel Pushbutton (discontinued)
Model Number: SD-7273-SSP
- Built-in pneumatic timer - no power required (1~60s)
- Excellent for installations where supplying additional timer power is inconvenient
- Reliable American-made pneumatic components
- D.P.S.T.
- NO/NC contact rated 5A@125VAC
- "EXIT" and "SALIDA" silk-screened on plate
| Type | Request-to-Exit Plates with Pneumatic Timer |
| Switching Capacity | 5A@125VAC |
| Built-in Timer | pneumatic timer - no power required (1~60s). |
| Wiring- Red | 2x N.C. #18 AWG 9" (230mm) |
| Wiring- White | 2x N.O. #18 AWG 9" (230mm) |
| Dimensions (Height x Width) | 4-1/2"x2-3/4" (115x70 mm) |
| Dimensions (Depth) | 2" (50mm) |
