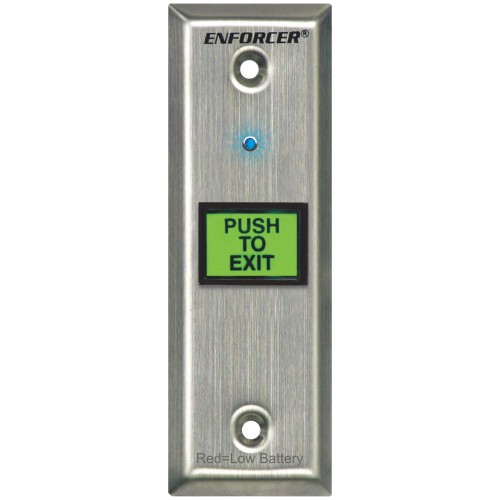

RF Wireless Request-to-Exit Plate, Slimline, Green Small Square Button (Discontinued)

Model Number: SD-8103GT-PEQ

Discontinued Product
  • Built-in RF transmitter:
  • Powered by 9VDC (battery included)
  • Range up to 50ft (15m)*
  • ​315MHz.
  • Over 68 billion (6.8x1010) possible codes
  • Dual-colored LED to indicate transmission:
Blue: Normal operation
Red: Low battery
  • Stainless-steel single-gang or slimline plate

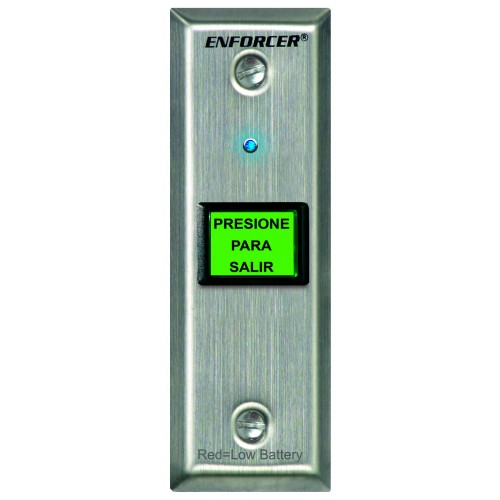

  • English "PUSH TO EXIT" and Spanish "Presione para Salir" messages included with SD-8202GT-PEQ and SD-8103GT-PEQ.
*Actual range will vary greatly depending on the installation and operating environment.
Operating Frequency 315 MHz
Operating voltage 9VDC
Battery Life Up to four (4) years (60 uses per day)
Dimensions 4-1/2" x 2-1/4" x 1-1/2" (114 x 57 x 38 mm)
