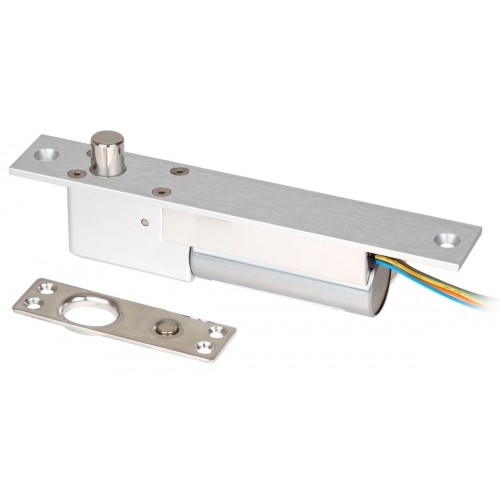

Electric Deadbolt - Fail-Safe
Model Number: SD-997B-GBQ
- Adds concealed deadbolt security to most wood or hollow metal doors,* with the added convenience of
electrical operation - Fail-safe operation (unlocks if power
is lost) - Status sensor (Door open/close monitor): SPDT, 500mA@12VDC
(NO/NC/COM) - Adjustable door lock delay timer
(0, 2.5, 5, or 9 sec) - Control wire allows release without cutting
unit's power - Magnetic switch determines door position for
positive locking - Solenoid attempts to lock several times and then shuts off if door not closed properly to prevent
burning out - Use with an optional digital keypad for high security
without a key - Easily connects to
SECO-LARM's Electronic Keypads - Suitable for office-type applications
- Shallow design for use with most metal
door jambs - No limiting installation orientation
- Powered by a solenoid
- Stainless steel for strength and long life. Operatiing lifetime:
1,000,000 operations - Plastic material Tefulon Polymonochlorotrifluoethylene
- Power 12/24 VDC (auto sensing), 900mA@12VDC / 440mA@24VDC on activation,
340mA@12VDC / 180mA@24VDC standby - Over-current protection 1.5A
- Stainless steel bolt, 5/8" diameter,
5/8" throw - Lock body (faceplate) dimensions -
77/8"x15/16" (200x32 mm) - Lock body (cavity) dimensions -
53/4"x11/8"x11/2" (145x28x38 mm) - Strike plate dimensions -
39/16"x1"x11/8" (90x25x33 mm) - Plug: Special conic cavity stainless steel (thickness 1.5mm~1.8mm)
Operation | Fail-safe |
Current Draw- Standby | 340mA@12VDC/180mA@24VDC |
Current Draw- Active | 900mA@12VDC/440mA@24VDC |
Status Sensor | SPDT, 250mA @ 12VDC (NO/NC/COM) |
Operating Voltage | 12/24 VDC |
Adjustable Delay Timer | 0, 2.5, 5, 9 seconds |
Weight | 1-lb 13-oz (0.8kg) |
