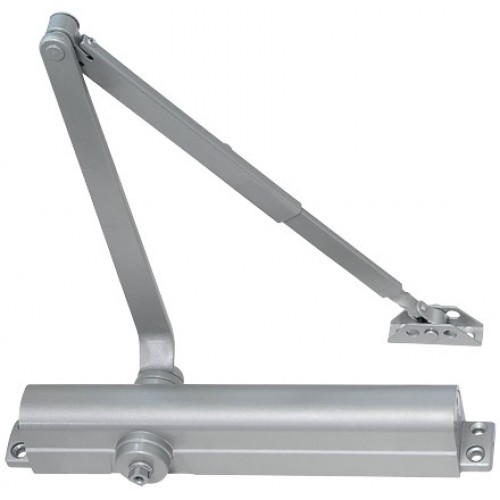

Heavy-Duty Door Closer with reversible non-handed design
Model Number: SD-C101-SBAQ
- Heavy-duty closer for commercial use
- Cast aluminum body & steel arm
- Adjustable sweep & latch speed
- Adjustable back check
- Adjustable spring force (1~6)
- Non-handed installation
- Tested to ANSI 156.4 (2 million life cycles)
- Silver finish
- Door width: 32”~60” (800~1500mm)
- Door weight: 45~330-lb (20~150kg)
- Decorative plastic cover
- Includes parallel arm bracket
- 5 Year warranty
| Closing Force | Size 1~6 |
| Installation | Tri-Pack-Regular, Top Jamb and Parallel Arms |
| Closing Force Adjustment | Adjustment screw |
| Grade 1 Construction | Yes |
| Max. Door Width | 60” (1500mm) |
| Max. Door Weight | 330-lb (150kg) |
| Adjustable Closing Speed via | Closing valve |
| Number of Valves | 1 Sweep, 1 Latch, 1 Back check |
| Second Closing Range | Yes 15° - 0° |
| End Latch | Yes by valve |
| Backcheck | Yes |
| Adjustment Valve | Yes |
| Non Handed Design | Yes |
| Max Door Opening Angle-Hinge Side | 180° |
| Fire and Smoke Check Doors | Yes |
| Length | 12-13/16” (325mm) |
| Width | 1-7/8” (47mm) |
| Height | 2-1/32” (51.5mm) |
| Weight | 4-lb (1.83kg) |
| Footprint | 12”x3/4” (304.8x19 mm) |
| Cover | Plastic |
| Finish | Silver |
| Parallel Arm Accessories | Yes |
| Construction Detail | Cast aluminum body, steel arm |
| Door Weight | 45~330-lb (20~150kg) |
