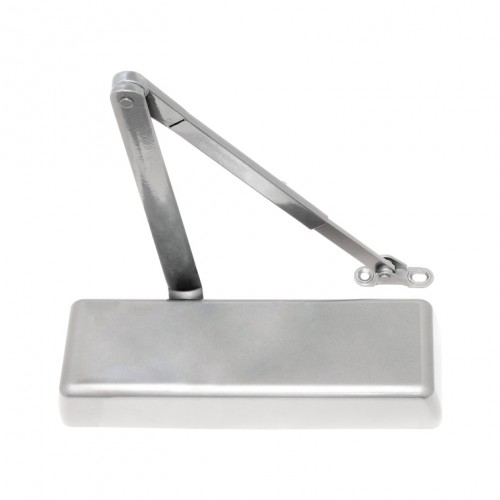

Door Closer - Heavy-Duty (Discontinued)
Model Number: SD-C101-SBBQ
Discontinued Product: Product replace by SD-C101-SBAQ
Discontinued Product: Product replace by SD-C101-SBAQ
- Heavy-duty closer for commercial use
- Cast iron body & forged steel arm
- Adjustable sweep & latch speed
- Adjustable back check
- Adjustable spring force (1~6)
- Non-handed installation
- Tested to ANSI 156.4 (2 million life cycles)
- Silver finish
- Door width: 32”~60” (800~1500mm)
- Door weight: 145~330-lb (65~150kg)
- Decorative plastic cover
- Includes parallel arm bracket
- Five year warranty
- Includes parallel arm bracket
Closing Force | Size 1~6 |
Installation | Tri-Pack-Regular, Top Jamb and Parallel Arms |
Closing Force Adjustment | Adjustment screw |
Grade 1 Construction | Yes |
Max. Door Width | 60” (1500mm) |
Max. Door Weight | 330-lb (150kg) |
Adjustable Closing Speed via | Closing valve |
Number of Valves | 1 Sweep, 1 Latch, 1 Back check |
Second Closing Range | Yes 15° - 0° |
End Latch | Yes by valve |
Backcheck | Yes |
Adjustment Valve | Yes |
Non Handed Design | Yes |
Max Door Opening Angle-Hinge Side | 130° |
Fire and Smoke Check Doors | Yes |
Length | 11-1/4” (285mm) |
Width | 2-3/4” (70.1mm) |
Height | 2” (51mm) |
Weight | 9-lb (3.88kg) |
Footprint | 5” x 2-1/4” x 1” (127 x 57 x 25.4 mm) |
Cover | Plastic |
Finish | Silver |
Parallel Arm Accessories | Yes |
Construction Detail | Cast iron body, forged steel arm |
Door Weight | 145~330-lb (65~150kg) |
