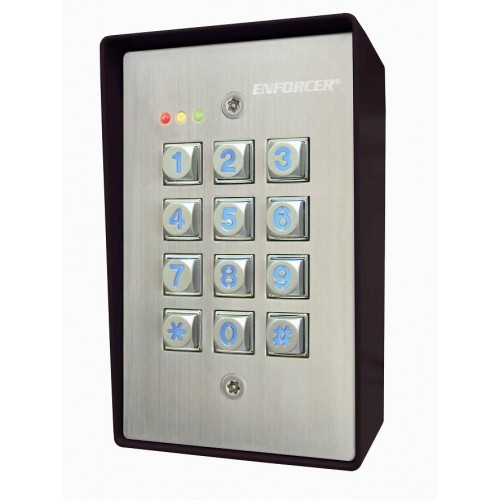

Weather-Resistant Rugged Illuminated Stand-Alone Keypad (Discontinued)
Model Number: SK-1123-SQ
Discontinued Product: Replaced by SK-1123-SDQ
Discontinued Product: Replaced by SK-1123-SDQ
- 2 relays:
5A@28VDC Form C, N.O./COM/N.C.
1A@28VDC Form C, N.O./COM/N.C. - Each relay can be programmed for momentary
(1-999 seconds) or latch - Code flexibility: Codes can be
4~8 digits long - Egress input for exiting the
protected premises - Dual voltage: 12~24
VDC/VAC operation - Lifetime limited warranty
- Tamper switch: N.C. dry contact 3A@12VDC
- Mantrap - For a protected area with 2 doors, this feature allows only 1 door to be open
at any time - All features are programmed directly from the keypad: No need for an
external programmer - Duress output: signals a silent alarm if an authorized user is forced to open the door
under duress - Keypad active output
- Door-forced-open
alarm output - Door-propped-open
alarm output - Keypad can be programmed to emit beeps for key presses or operate in
silent mode - EEPROM memory protects programmed information in case of
power loss - Auto or manual code
entry checking:
-- Auto: No # key required aftereach code.
-- Manual: # key must be pressed afterevery code. - SK-1011-SQ and SK-1131-SQ Digital Access Keypads also available. Contact
SECO-LARM for details. - Low current draw suitable for
solar applications
