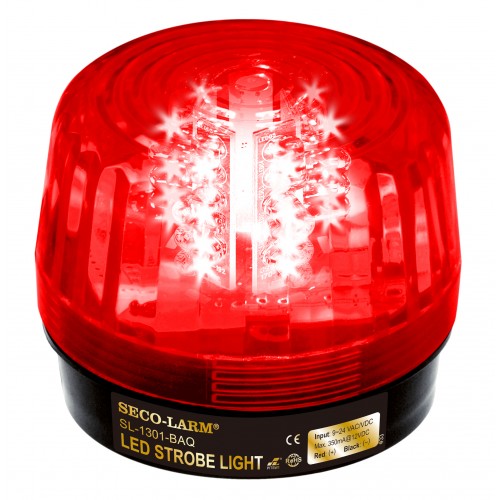

LED Strobe Light - 32 LEDs, Adjustable Flash Speeds & Patterns, Red
Model Number: SL-1301-BAQ/R
• Operating life over 50,000 hours (over 5.7 years)
• Same size as the SL-126Q strobe light and uses same lenses
• Simple 2-wire installation
• High-impact resistant case
• High-impact and heat-resistant lens
• Weatherproof (IP66)
• Weatherproof (IP66)
• Reverse polarity protection.
• 5 lens colors available: Amber, Blue, Green, Red and Clear
• 5 Vertical LED strips (32 LEDs) increase visibility from various directions
• 8 different flashing options, plus adjustable flashing speed
• Backup battery available for continuous lighting applications
Strobe Light Ordering Information
| Model No. | Color | Voltage |
| SL-1301-BAQ/A | Amber | 9-24 VAC/VDC |
| SL-1301-BAQ/B | Blue | 9-24 VAC/VDC |
| SL-1301-BAQ/C | Clear | 9-24 VAC/VDC |
| SL-1301-BAQ/G | Green | 9-24 VAC/VDC |
| SL-1301-BAQ/R | Red | 9-24 VAC/VDC |
| Operating Voltage | 9-24 VAC/VDC |
| Current Draw (Max.) | 70~350mA |
| No. of Flash Patterns | 8 |
| Flashing Speed | Adjustable 80~160 times/min |
| Vertical LED Strips | 5 |
| Total No. of LEDs | 32 |
| Backup Battery | Steady ON - Up to 4 hours. Strobe flashing - Up to 5 hours. |
| Operating Temperature | -4°~144° F (-20°~65° C) |
| Electrical Protection | Reverse polarity protection |
| Built-in Siren | No |
| Operating Life | Over 50,000 hours (over 5.7 years) |
| IP Rating | Weatherproof IP66 |
| Dimensions | 3-15/16" x 2-29/32" (100 x 74 mm) |
