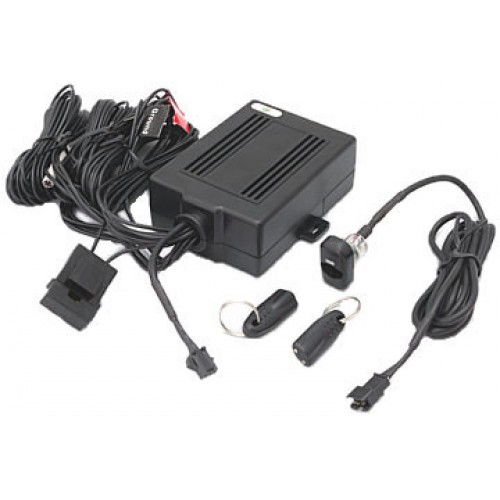

Touchkey Vehicle Immobilizer (discontinued)
Model Number: SLI 762FP-ISS
Touchkey --Simplicity and Security
Touchkey --
- Immobilization of up to two electrical circuits (e.g. starter, ignition, fuel pump) once system is armed
- Handsomely crafted backlit receptacle
Backlit, so easy to find and insert TouchKey at night, plus spring-loaded to ensure easy andproper contact - Two built-in 30 Amp relays
- Two tamper-proof Touchkey controllers supplied with
each unit
disarm the Immobilizer; cannot be copied - Passive arming
Arms automatically 30 seconds after ignitionturned OFF - Multifunction LED indicator
Built into the receptacle. Indicates arming, armed, disarmed, code learning,valet/override mode - Code learning.
Learns up to 4 TouchKey Controllers into EEPROM with millions of possible codes. Codes of lost TouchKeys are easily deleted to prevent use by thieves.No battery required - Multiple car operation
Secure valet/override mode
Unique 3-digit code via the ignition switch and LED must be entered to override immobilizer and put it invalet mode
Operating voltage | 10~15 VDC |
Number of Relays | 2 |
Operating Temperature | -40º~185 ºF (-40 º~85 º C) |
Relay Rating | 30A@12VDC |
Current Draw | Standby- 5mA@12VDC, Active- 230mA@12VDC |
