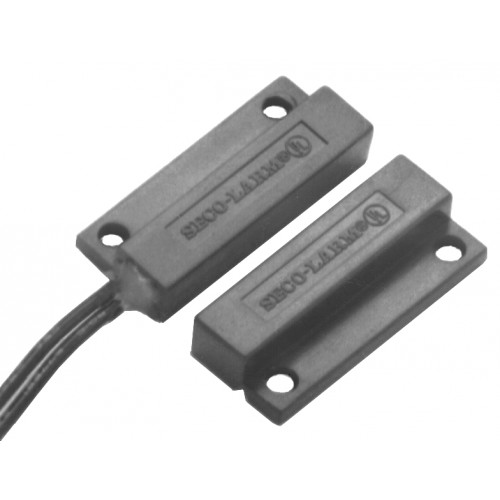

Miniature Surface-Mount Magnetic Contacts
Model Number: SM-205Q/BR
- Miniature "flange type" surface-mount magnetic contacts are perfect for sliding doors and windows where space is limited
- Screw or adhesive mount
- Mounting flange breaks off for extra miniature size
- High-impact weatherproof white ABS plastic case
- Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
- 15" (38cm) leads extend from side of switch
- 3/4" (19mm) Gap
- Lifetime limited warranty
- White also available!
Loop Type | Closed loop |
Electrical Configuration | N/O |
Operation Gap | 3/4" (19mm) |
Terminals | 15" (38cm) leads from side |
Color | Brown |
Material - Case | High-impact ABS plastic |
Contacts | Deactivated rhodium on gold under-plating |
Contact Rating | 1.0A@10VDC (max), 10W (max) |
Operating Temperature | -15º~+160º F (-25º~70º C) |
Switch Cycles | 50 Million (0.1mA@5VDC) |
Switch Dimensions | 1-3/8" x 3/8" x 1/4" (35 x 10 x 6 mm) |
Magnet Dimensions | 1-3/8" x 3/8" x 1/4" (35 x 10 x 6 mm) |
Magnet Type | Alnico 5 |
