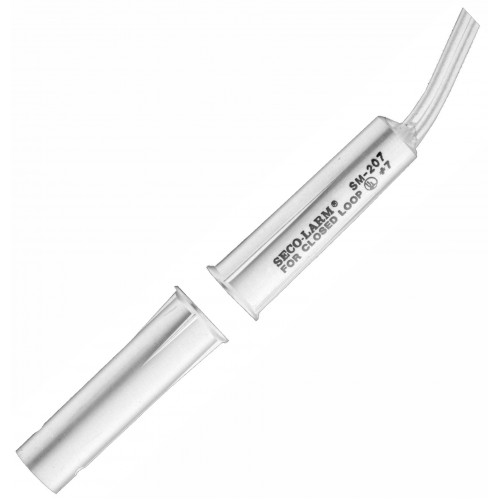

3/8" Concealed-Mount Magnetic Contact Switches
Model Number: SM-207Q/W
- Used for protecting sliding doors and windows where space is limited
- Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
- Unique glue/epoxy compound protects reed switch
- 1" (25mm) Gap
- 3/8", Press-fit mount
- 15", (38cm) wire leads
- Lifetime limited warranty
- White case
- Brown also available
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Operation Gap | 1", (25mm) |
| Color | White |
| Leads | Pre-wired 15", #22 |
| Material - Case | High-impact ABS plastic / epoxy compound |
| Contacts | Deactivated rhodium on gold under-plating |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15º~+160º F (-25º~70º C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 1-3/8" x 7/16" x 3/8" (35 x 11 x 9 mm) |
| Magnet Dimensions | 1-3/8" x 7/16" x 3/8" (35 x 11 x 9 mm) |
| Magnet Type | Alnico 5 |
