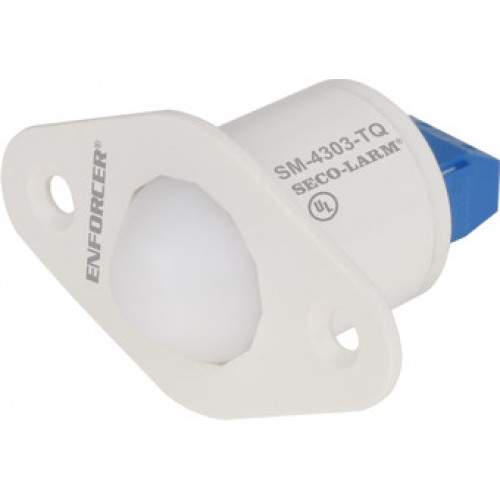

Rollerball-Type Recessed-Mount Magnetic Contact Switch
Model Number: SM-4303-TQ/W
- Rollerball with screw connectors, white
- Used for protecting sliding doors and windows where space is limited
- Magnet and reed switch contained in housing
- Contact reed switch is SPST, ruthenium on gold under plating, for a long life
- Spacer and screws included
- 360º Rollerball plunger travel is 1/4" (6mm)
- Screw terminals
- Lifetime limited warranty
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Switch Travel | 1/4" (6mm) |
| Switch Type | Plunger |
| Color | White |
| Material | High-impact ABS plastic |
| Contacts | Ruthenium on gold underplating |
| Contact Rating | 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 25/32" x 3/4" x 1/4" (19.8 x 19 x 6.3 5 mm) |
| Magnet Type | Rubber |
