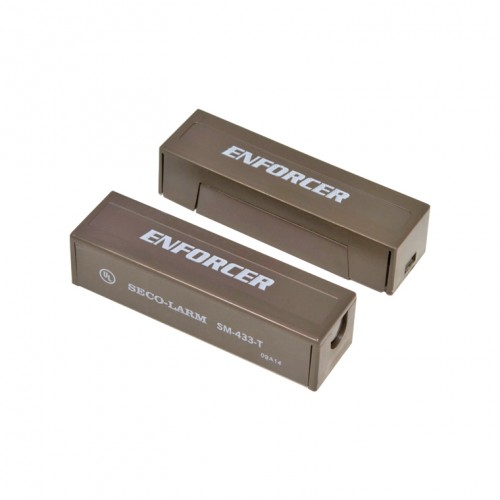

Concealed-Terminal Adhesive Surface-Mount Magnetic Contacts
Model Number: SM-433-TQ/B
- Cover hides mounting screws, terminal block, and wires
- Gold-plated screw terminals for longer life and reliability
- Contact reed switch is SPST, iridium-plated to have a high melting point, and Vickers hardness, for higher handling power and a long life
- Adhesive mount, double-sided mounting tape included
- 1-1/4" (31mm) Gap
- Lifetime limited warranty
- Brown case
- White also available!
| Loop Type | Closed loop |
| Electrical Configuration | N/O |
| Color | Brown |
| Mounting Tabs | Adhesive tape |
| Material - Case | High-impact ABS plastic |
| Material - Terminals | Gold-plated |
| Contacts | Iridium-plating |
| Contact Rating | 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 2" x 9/16" x 1/2" (51 x 14 x 13 mm) |
| Magnet Dimensions | 2" x 9/16" x 1/2" (51 x 14 x 13 mm) |
| Magnet Type | Rare-earth neodymium |
