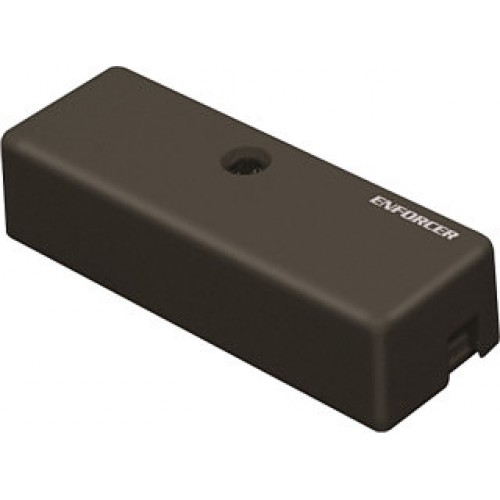

Vibration Detector (Brown)
Model Number: SS-040Q/BR
- Use in closed-circuit
alarm systems - Detects shock to window glass, walls,
or ceilings - Pure silver contact with gold plating assures reliable,
long-term operation - Built-in tamper switch for
complete security - Contact pressure: Adjustable from 1 to 50 grams, recommended setting between 5 and
25 grams - Contact rating: 1.0A at 50VDC
- Life: Over 100,000 contacts
- Size: 5/8"x7/8"x23/8"
(15x21x60 mm) - White also available!
| Circuit | Normally-closed contact, momentarily open when activated |
| Contact Pressure | Adjustable from 1 to 50 grams but recommended setting between 5 and 25 grams only. Supplied with pressure of approx. 6 grams |
| Relay Rating | 1A @ 50VDC |
| Break Time | Approx. 45 ms max. (at 6-gram pressure) |
| Life | Over 100,000 contacts |
| Contacts | Pure silver |
| Case | ABS resin |
| Color | Brown |
| Dimensions | 5/8" x 7/8" x 2-3/8" (15 x 21 x 60 mm). |
| Weight | 20 g |
